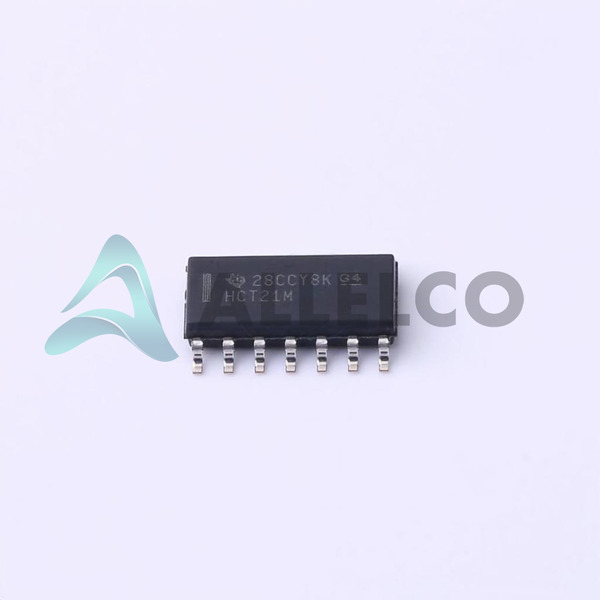

Manufacturer Part Number
CD74HCT21M96
Manufacturer
Texas Instruments
Introduction
The CD74HCT21M96 is a high-speed Si-gate CMOS device that is part of the 74HCT series, designed for use in managing and processing digital information. This product primarily serves as a dual 4-input AND Gate.
Product Features and Performance
CMOS technology ensures low power consumption.
High noise immunity characteristic of CMOS devices.
Capable of operating from a supply voltage range of 4.5V to 5.5V.
Dual 4-input AND gate logic function.
Very low quiescent current at 2 µA.
Provides high and low output currents of 4mA.
Fast propagation delay of 27ns at 4.5V with a load capacitance of 50pF.
Operates across a wide temperature range from -55°C to 125°C.
Product Advantages
Enhanced power efficiency due to low power consumption.
Improved robustness against noise, suitable for noisy operational environments.
Versatile operation with support for a broad range of power supplies.
Suitable for high-speed applications due to its quick response time.
Reliable performance in extreme temperature conditions.
Key Technical Parameters
Logic Type: AND Gate
Number of Circuits: 2
Number of Inputs: 4
Voltage Supply: 4.5V ~ 5.5V
Current Quiescent (Max): 2 µA
Output Current (High, Low): 4mA
Input Logic Level Low: 0.8V; High: 2V
Max Propagation Delay @ V, Max CL: 27ns @ 4.5V, 50pF
Operating Temperature: -55°C ~ 125°C
Quality and Safety Features
Manufactured under stringent quality control standards.
Possesses high durability and reliability for extended product lifecycle.
Compatibility
Surface mount compatibility with a 14-SOIC package.
Integrates seamlessly into existing and new designs that require dual 4-input AND gate functionality.
Application Areas
Digital signal processing
Complex logic circuit configurations
Telecommunications systems
Computing devices
Industrial controls
Product Lifecycle
Current product status is active.
Not nearing discontinuation, ensuring long-term availability and support.
Several Key Reasons to Choose This Product
High reliability and robustness suitable for demanding applications.
Low power consumption making it ideal for energy-sensitive projects.
Wide operating temperature range accommodates extreme environmental conditions.
Fast response time benefits time-sensitive signal processing tasks.
Manufactured by Texas Instruments, a leader in semiconductor solutions, ensuring product quality and innovation.
