Manufacturer Part Number
CDC2586PAHR
Manufacturer
Texas Instruments
Introduction
The CDC2586PAHR is a high-performance PLL clock driver from Texas Instruments. It is a versatile device that can be used in a wide range of applications, including telecommunications, industrial control, and consumer electronics. The CDC2586PAHR offers a flexible and configurable clock generation solution with a range of features to meet the needs of modern electronic systems.
Product Features and Performance
PLL with bypass mode
LVTTL input and output
Single-circuit design
1:12 input to output ratio
Frequency range up to 100MHz
Integrated divider and multiplier
3V to 3.6V supply voltage
0°C to 70°C operating temperature range

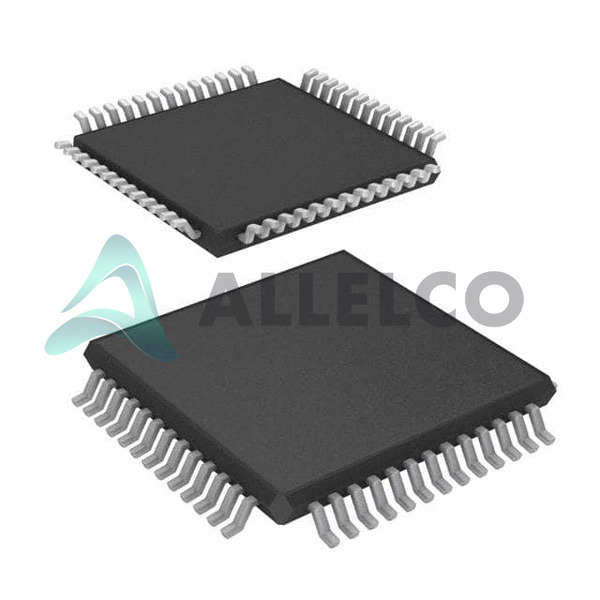

Surface mount package (52-TQFP)
Product Advantages
Flexible clock generation solution
Compact and space-saving design
Wide operating frequency range
Configurable input/output ratios
Low power consumption
Reliable and robust performance
Key Reasons to Choose This Product
Versatile clock generation capabilities
Excellent performance and reliability
Cost-effective and easy to integrate
Backed by the trusted Texas Instruments brand
Suitable for a wide range of applications
Quality and Safety Features
Rigorous quality control and testing
Compliance with industry standards
Robust design for reliable operation
Thermal management features for safe operation
Compatibility
The CDC2586PAHR is compatible with a variety of electronic systems and can be used in a wide range of applications, including:
Telecommunications equipment
Industrial control systems
Consumer electronics
Medical devices
Automotive electronics
Application Areas
Clock distribution and synchronization
Reference clock generation
Frequency synthesis
System timing and clocking
Product Lifecycle
The CDC2586PAHR is currently an obsolete product, meaning it is no longer in active production. However, Texas Instruments may have equivalent or alternative models available that can provide similar functionality. Customers are advised to contact our website's sales team for more information on available options and product lifecycle details.
