Manufacturer Part Number

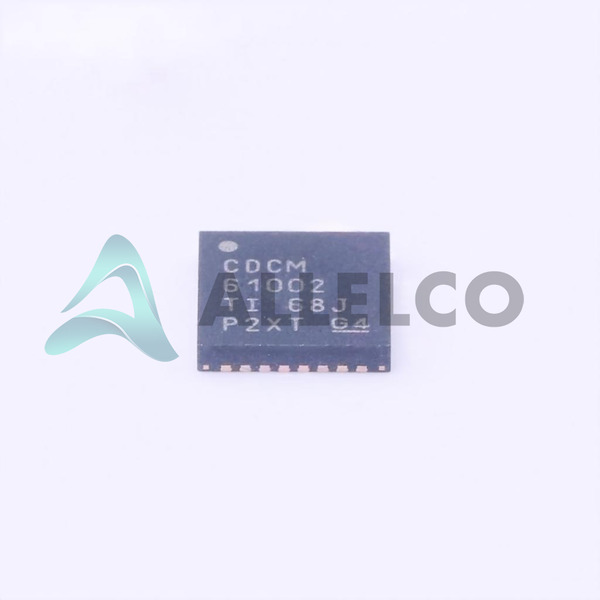

CDCM61002RHBT
Manufacturer
Texas Instruments
Introduction
The CDCM61002RHBT is a high-performance clock generator from Texas Instruments, designed for precision timing solutions.
Product Features and Performance
Integrated Phase-Locked Loop (PLL) with Bypass option
Supports LVCMOS, Crystal inputs, and LVCMOS, LVDS, LVPECL outputs
Capable of generating up to 683.28MHz frequency
Includes divider/multiplier functionality
Operates across a voltage range of 3V to 3.6V
Designed for surface mount applications
Provided in a 32-VFQFN Exposed Pad package for enhanced thermal performance
Product Advantages
Flexible input and output signal compatibility for diverse design needs
High-frequency support for demanding applications
Compact 32-VQFN package saves space on PCBs
Low voltage operation for energy-efficient designs
Key Technical Parameters
Number of Circuits: 1
Ratio Input:Output: 1:3
Frequency Max: 683.28MHz
Voltage Supply: 3V ~ 3.6V
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Manufactured under Texas Instruments' stringent quality control standards
Designed to operate reliably in harsh environments (-40°C to 85°C)
Compatibility
Versatile I/O compatibility (LVCMOS, LVDS, LVPECL) allows easy integration into various systems
Compatible with both LVCMOS and Crystal input signals
Application Areas
Telecommunications
Computing systems
High-frequency signal generation
Industrial electronics
Product Lifecycle
Currently Active
Texas Instruments provides support and documentation to aid in long-term use
Several Key Reasons to Choose This Product
High performance clock generation capabilities for precision timing needs
Versatile input/output options cater to a wide range of electronic designs
Energy-efficient operation and compact packaging enhance system design
Supported by Texas Instruments' reliability and engineering excellence
