Manufacturer Part Number
CDCM7005ZVAR
Manufacturer
Texas Instruments
Introduction
High-performance clock synchronizer and jitter cleaner
Product Features and Performance
Clock Synchronizer and Jitter Cleaner
PLL with Bypass mode
Supports LVCMOS and LVPECL inputs
Multiple LVCMOS and LVPECL outputs
Single IC circuit solution
Product Advantages
Minimizes jitter and synchronizes clocks efficiently
High frequency support up to 1.5GHz
Versatile input and output compatibility
Supports complex clocking configurations
Key Technical Parameters
Input: LVCMOS, LVPECL
Output: LVCMOS, LVPECL
Number of Circuits: 1
Ratio - Input:Output: 3:10
Differential - Input:Output: Yes/Yes
Frequency - Max: 1.5GHz
Divider/Multiplier: Yes/No
Voltage - Supply: 3V ~ 3.6V
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Complies with industry-standard quality and safety norms
Reliable performance across specified temperature range
Compatibility
Compatible with LVCMOS, LVPECL input signals
Mounting Type: Surface Mount

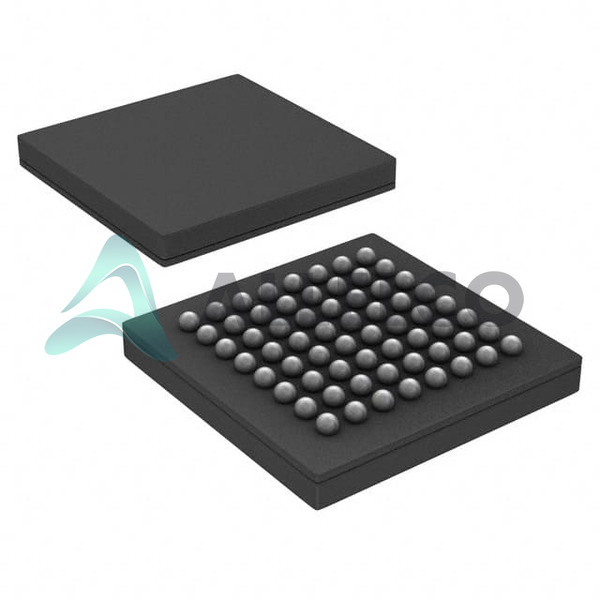

Package / Case: 64-LFBGA
Application Areas
Telecommunications
Networking equipment
Data centers
High-performance computing systems
Product Lifecycle
Status: Active
Stable life cycle with TI assurance for continuity of supply
Several Key Reasons to Choose This Product
Robust clock management solution for high-speed systems
Ability to clean jitter and synchronize multiple clock signals
Ease of design with surface mount packaging
Ideal for demanding applications requiring precise clocking
Long-term reliability backed by Texas Instruments support
