HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleCSD17570Q5B

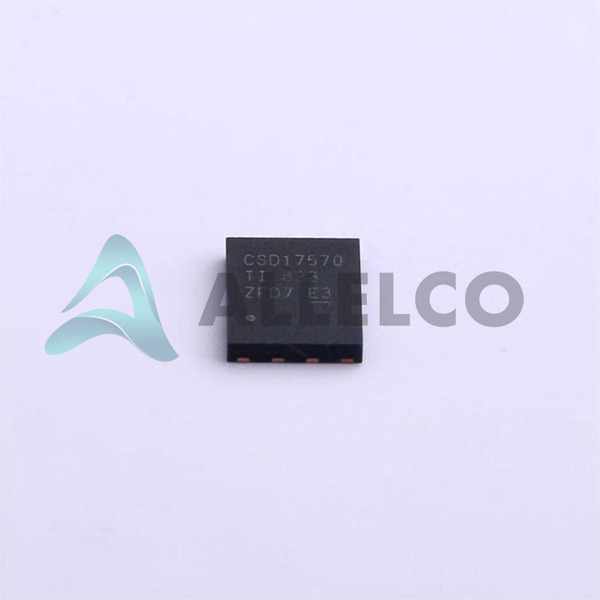

CSD17570Q5B Image
CSD17570Q5B Image - 1CSD17570Q5B Image - 2CSD17570Q5B Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

CSD17570Q5B - Texas Instruments

Manufacturer Part Number
CSD17570Q5B
Manufacturer
Texas Instruments
Allelco Part Number
32D-CSD17570Q5B
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
MOSFET N-CH 30V 100A 8VSON
Package
8-VSON-CLIP (5x6)
Data sheet
1.CSD17570Q5B.pdf ...

PCN Design/Specification

Qualification Revision A 01/Jul/2014.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 35010
  • Unit Price: $1.165
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.165 $1.17
10+ $1.134 $11.34
30+ $1.115 $33.45
100+ $1.094 $109.40
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

CSD17570Q5B Tech Specifications
Texas Instruments - CSD17570Q5B technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CSD17570Q5B

Product Attribute Attribute Value
Manufacturer Texas Instruments
Vgs(th) (Max) @ Id 1.9V @ 250µA
Vgs (Max) ±20V
Technology MOSFET (Metal Oxide)
Supplier Device Package 8-VSON-CLIP (5x6)
Series NexFET™
Rds On (Max) @ Id, Vgs 0.69mOhm @ 50A, 10V
Power Dissipation (Max) 3.2W (Ta)
Package / Case 8-PowerTDFN
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Input Capacitance (Ciss) (Max) @ Vds 13600 pF @ 15 V
Gate Charge (Qg) (Max) @ Vgs 121 nC @ 4.5 V
FET Type N-Channel
FET Feature -
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 100A (Ta)
Base Product Number CSD17570Q5

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

Manufacturer Part Number

CSD17570Q5B

Manufacturer

Texas Instruments

Introduction

High-performance GaN FET in 8-VSON-CLIP (5x6) package for power conversion applications

Product Features and Performance

High current capability up to 100A

Ultra-low on-resistance of 0.69mΩ

High-speed switching with fast turn-on/turn-off

Wide operating temperature range of -55°C to 150°C

High input capacitance of 13600pF

Maximum power dissipation of 3.2W

Product Advantages

Excellent performance for high-efficiency power conversion

Compact package for space-constrained designs

Robust thermal characteristics for reliable operation

Key Technical Parameters

Drain to Source Voltage (Vdss): 30V

Gate-Source Voltage (Vgs): ±20V

Continuous Drain Current (Id): 100A

On-Resistance (Rds(on)): 0.69mΩ

Input Capacitance (Ciss): 13600pF

Gate Charge (Qg): 121nC

Quality and Safety Features

RoHS3 compliant

MOSFET technology with high reliability and safety

Compatibility

Suitable for a wide range of power conversion applications, such as DC-DC converters, motor drives, and power supplies

Application Areas

Power conversion

Motor drives

Industrial electronics

Telecommunications equipment

Automotive electronics

Product Lifecycle

Currently available

No plans for discontinuation

Several Key Reasons to Choose This Product

Exceptional performance with ultra-low on-resistance and high current capability

Compact package for space-constrained designs

Robust thermal characteristics for reliable operation

Proven MOSFET technology for high reliability and safety

Suitable for a wide range of power conversion applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CSD17570Q5B

Product Attribute CSD17570Q5BT CSD17573Q5B CSD17576Q5B CSD17573Q5BT
Part Number CSD17570Q5BT CSD17573Q5B CSD17576Q5B CSD17573Q5BT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Base Product Number - DAC34H84 MAX500 ADS62P42
Gate Charge (Qg) (Max) @ Vgs - - - -
Series - - - -
Drain to Source Voltage (Vdss) - - - -
Rds On (Max) @ Id, Vgs - - - -
Power Dissipation (Max) - - - -
Current - Continuous Drain (Id) @ 25°C - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Technology - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Vgs(th) (Max) @ Id - - - -
Vgs (Max) - - - -
Drive Voltage (Max Rds On, Min Rds On) - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Mounting Type - Surface Mount Through Hole Surface Mount
FET Feature - - - -
Input Capacitance (Ciss) (Max) @ Vds - - - -
FET Type - - - -

CSD17570Q5B Datasheet PDF

Download CSD17570Q5B pdf datasheets and Texas Instruments documentation for CSD17570Q5B - Texas Instruments.

PCN Design/Specification
Qualification Revision A 01/Jul/2014.pdf
PCN Assembly/Origin
Assembly/Test Site Transfer 19/Dec/2014.pdf
