HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleCSD18532KCS

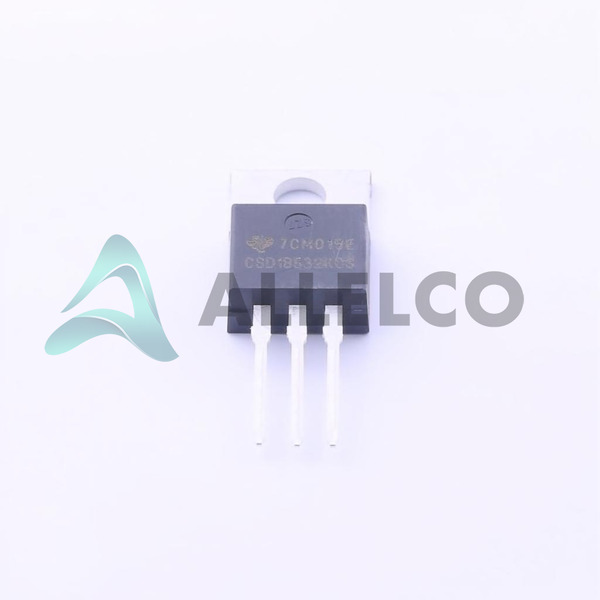

CSD18532KCS Image
CSD18532KCS Image - 1CSD18532KCS Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

CSD18532KCS - Texas Instruments

Manufacturer Part Number
CSD18532KCS
Manufacturer
Texas Instruments
Allelco Part Number
32D-CSD18532KCS
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
MOSFET N-CH 60V 100A TO220-3
Package
TO-220-3
Data sheet
1.CSD18532KCS.pdf ...

PCN Assembly/Origin

Site Chg 04/Dec/2015.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 25926
  • Unit Price: $1.523
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.523 $1.52
10+ $1.315 $13.15
50+ $1.184 $59.20
100+ $1.051 $105.10
500+ $0.991 $495.50
1000+ $0.965 $965.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

CSD18532KCS Tech Specifications
Texas Instruments - CSD18532KCS technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CSD18532KCS

Product Attribute Attribute Value
Manufacturer Texas Instruments
Vgs(th) (Max) @ Id 2.2V @ 250µA
Vgs (Max) ±20V
Technology MOSFET (Metal Oxide)
Supplier Device Package TO-220-3
Series NexFET™
Rds On (Max) @ Id, Vgs 4.2mOhm @ 100A, 10V
Power Dissipation (Max) 250W (Tc)
Package / Case TO-220-3
Package Tube
Product Attribute Attribute Value
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Input Capacitance (Ciss) (Max) @ Vds 4680 pF @ 30 V
Gate Charge (Qg) (Max) @ Vgs 53 nC @ 10 V
FET Type N-Channel
FET Feature -
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Base Product Number CSD18532

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

Manufacturer Part Number

CSD18532KCS

Manufacturer

Texas Instruments

Introduction

High-performance N-channel MOSFET transistor

Product Features and Performance

High current capability up to 100A continuous drain current

Low on-resistance of 4.2 mOhm

Wide operating voltage range up to 60V

Wide operating temperature range from -55°C to 175°C

Fast switching speed

High power density with up to 250W power dissipation

Product Advantages

Efficient power conversion and control

Compact size and high power density

Reliable operation in harsh environments

Ease of integration and design

Key Technical Parameters

Drain to Source Voltage (Vdss): 60V

Gate-Source Voltage (Vgs): ±20V

On-Resistance (Rds(on)): 4.2 mOhm

Continuous Drain Current (ID): 100A

Input Capacitance (Ciss): 4680 pF

Power Dissipation (Pd): 250W

Quality and Safety Features

RoHS3 compliant

Through-hole TO-220-3 package

Robust design for reliable operation

Compatibility

Compatible with a wide range of power electronic applications

Application Areas

Power supplies

Motor drives

Inverters

Industrial and consumer electronics

Product Lifecycle

This product is an active and widely-used component.

Replacements and upgrades are readily available.

Key Reasons to Choose This Product

High current and power handling capability

Extremely low on-resistance for efficient power conversion

Wide operating voltage and temperature range

Compact size and high power density

Reliable performance in harsh environments

Easy integration and design flexibility

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CSD18532KCS

Product Attribute CSD18533KCS CSD18532NQ5B CSD18532Q5B CSD18532Q5BT
Part Number CSD18533KCS CSD18532NQ5B CSD18532Q5B CSD18532Q5BT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Technology - - - -
Drain to Source Voltage (Vdss) - - - -
Gate Charge (Qg) (Max) @ Vgs - - - -
FET Type - - - -
FET Feature - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Vgs(th) (Max) @ Id - - - -
Rds On (Max) @ Id, Vgs - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Base Product Number - DAC34H84 MAX500 ADS62P42
Vgs (Max) - - - -
Series - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Mounting Type - Surface Mount Through Hole Surface Mount
Power Dissipation (Max) - - - -
Input Capacitance (Ciss) (Max) @ Vds - - - -
Current - Continuous Drain (Id) @ 25°C - - - -
Drive Voltage (Max Rds On, Min Rds On) - - - -

CSD18532KCS Datasheet PDF

Download CSD18532KCS pdf datasheets and Texas Instruments documentation for CSD18532KCS - Texas Instruments.

PCN Assembly/Origin
Site Chg 04/Dec/2015.pdf
