HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleCSD18543Q3A

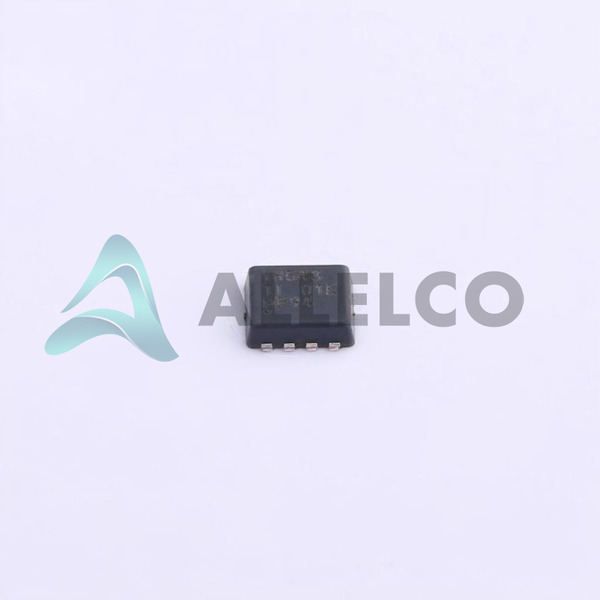

CSD18543Q3A Image
CSD18543Q3A Image - 1CSD18543Q3A Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

CSD18543Q3A - Texas Instruments

Manufacturer Part Number
CSD18543Q3A
Manufacturer
Texas Instruments
Allelco Part Number
32D-CSD18543Q3A
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
MOSFET N-CH 60V 60A 8VSON
Package
8-VSONP (3x3.15)
Data sheet
-
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 118320
  • Unit Price: $0.24
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.24 $0.24
10+ $0.191 $1.91
30+ $0.17 $5.10
100+ $0.144 $14.40
500+ $0.132 $66.00
1000+ $0.126 $126.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

CSD18543Q3A Tech Specifications
Texas Instruments - CSD18543Q3A technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CSD18543Q3A

Product Attribute Attribute Value
Manufacturer Texas Instruments
Vgs(th) (Max) @ Id 2.7V @ 250µA
Vgs (Max) ±20V
Technology MOSFET (Metal Oxide)
Supplier Device Package 8-VSONP (3x3.15)
Series NexFET™
Rds On (Max) @ Id, Vgs 9.9mOhm @ 12A, 10V
Power Dissipation (Max) 66W (Tc)
Package / Case 8-PowerVDFN
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Input Capacitance (Ciss) (Max) @ Vds 1150 pF @ 30 V
Gate Charge (Qg) (Max) @ Vgs 14.5 nC @ 10 V
FET Type N-Channel
FET Feature Standard
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 60A (Tc)
Base Product Number CSD18543

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

Manufacturer Part Number

CSD18543Q3A

Manufacturer

Texas Instruments

Introduction

High-performance N-channel MOSFET transistor

Part of the NexFET series

Product Features and Performance

Operates at temperatures from -55°C to 150°C

Drain-to-source voltage up to 60V

Gate-to-source voltage up to ±20V

Very low on-resistance of 9.9mΩ @ 12A, 10V

High continuous drain current of 60A at 25°C

Input capacitance of 1150pF @ 30V

Gate charge of 14.5nC @ 10V

Product Advantages

Excellent thermal performance

Extremely low on-resistance for high efficiency

High current capability

Suitable for high-frequency switching applications

Key Technical Parameters

Drain-to-source voltage (Vdss): 60V

Maximum gate-to-source voltage (Vgs): ±20V

On-resistance (Rds(on)): 9.9mΩ @ 12A, 10V

Continuous drain current (Id): 60A @ 25°C

Input capacitance (Ciss): 1150pF @ 30V

Gate charge (Qg): 14.5nC @ 10V

Quality and Safety Features

RoHS3 compliant

Suitable for high-reliability applications

Compatibility

Can be used in a wide range of power electronics and power conversion applications

Application Areas

Power supplies

Motor drives

Inverters

Battery management systems

Industrial and consumer electronics

Product Lifecycle

Currently in production

No known plans for discontinuation

Replacement or upgrade options may be available in the future

Key Reasons to Choose This Product

Excellent thermal performance and efficiency due to extremely low on-resistance

High current capability for demanding applications

Reliable operation at high temperatures

Compact package size and surface mount design for easy integration

Proven performance and quality from a reputable manufacturer, Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CSD18543Q3A

Product Attribute CSD18543Q3AT CSD18563Q5A CSD18537NQ5AT CSD18537NQ5A
Part Number CSD18543Q3AT CSD18563Q5A CSD18537NQ5AT CSD18537NQ5A
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
FET Type - - - -
Current - Continuous Drain (Id) @ 25°C - - - -
Vgs (Max) - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Mounting Type - Surface Mount Through Hole Surface Mount
Vgs(th) (Max) @ Id - - - -
Series - - - -
Drive Voltage (Max Rds On, Min Rds On) - - - -
Drain to Source Voltage (Vdss) - - - -
Technology - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
FET Feature - - - -
Gate Charge (Qg) (Max) @ Vgs - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Input Capacitance (Ciss) (Max) @ Vds - - - -
Power Dissipation (Max) - - - -
Rds On (Max) @ Id, Vgs - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
