Specifications
CSD75301W1015 Tech Specifications
Texas Instruments - CSD75301W1015 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CSD75301W1015
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Texas Instruments |
|
| Vgs(th) (Max) @ Id |
1V @ 250µA |
|
| Technology |
MOSFET (Metal Oxide) |
|

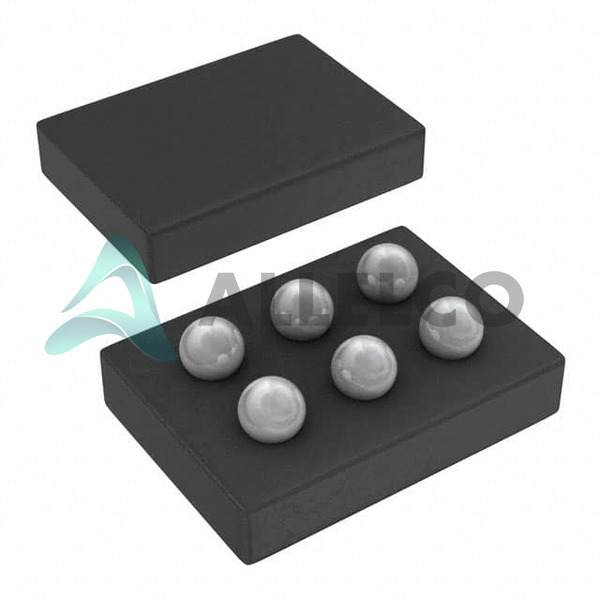

| Supplier Device Package |
6-DSBGA (1x1.5) |
|
| Series |
NexFET™ |
|
| Rds On (Max) @ Id, Vgs |
100mOhm @ 1A, 4.5V |
|
| Power - Max |
800mW |
|
| Package / Case |
6-UFBGA, DSBGA |
|
| Package |
Tape & Reel (TR) |
|
| Product Attribute |
Attribute Value
| |
| Operating Temperature |
-55°C ~ 150°C (TJ) |
|
| Mounting Type |
Surface Mount |
|
| Input Capacitance (Ciss) (Max) @ Vds |
195pF @ 10V |
|
| Gate Charge (Qg) (Max) @ Vgs |
2.1nC @ 4.5V |
|
| FET Feature |
Logic Level Gate |
|
| Drain to Source Voltage (Vdss) |
20V |
|
| Current - Continuous Drain (Id) @ 25°C |
1.2A |
|
| Configuration |
2 P-Channel (Dual) |
|
| Base Product Number |
CSD75301 |
|
