Manufacturer Part Number

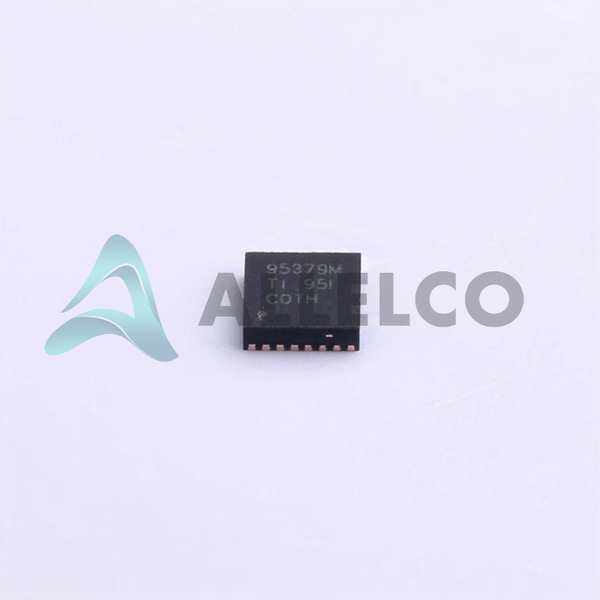

CSD95379Q3M
Manufacturer
Texas Instruments
Introduction
The CSD95379Q3M is a half-bridge MOSFET driver from Texas Instruments, designed for power management applications, specifically efficient synchronous buck converters.
Product Features and Performance
Integrated NexFET™ Power MOSFET technology
Bootstrap circuit and diode emulation features
Supports PWM interface
Inductive load type handling
Product Advantages
High current capacity with continuous output of 20A and peak output of 45A
Optimized for low voltage operations ranging from 4.5V to 16V
Capable of operating in a wide temperature range from -40°C to 150°C
Key Technical Parameters
Output Configuration: Half Bridge
Voltage Supply: 4.5V ~ 5.5V
Voltage Load: 4.5V ~ 16V
Current Output / Channel: 20A
Current Peak Output: 45A
Operating Temperature: -40°C ~ 150°C
Quality and Safety Features
Shoot-through and Under-Voltage Lock-Out (UVLO) fault protection
Surface Mount (VSON 10, 3.3x3.3mm)
Compatibility
Ideal for synchronous buck converter applications
Application Areas
Power supply modules
DC-DC converters
Switching regulators
Compact and high-efficiency power management systems
Product Lifecycle
Currently active with continuous production and support from Texas Instruments
No indication of discontinuation, ensuring long-term availability for new designs and existing systems
Several Key Reasons to Choose This Product
Utilizes advanced NexFET™ technology for improved performance and efficiency
High reliability and robustness in challenging thermal and electrical environments
Compact and versatile for a wide range of high-performance applications
Comprehensive protection features enhance product longevity and safety in application
Backed by Texas Instruments' strong support and reliability in semiconductor manufacturing
