HomeProductsPower Supplies - (Board Mount)DC DC ConvertersDCP012415DBP-U

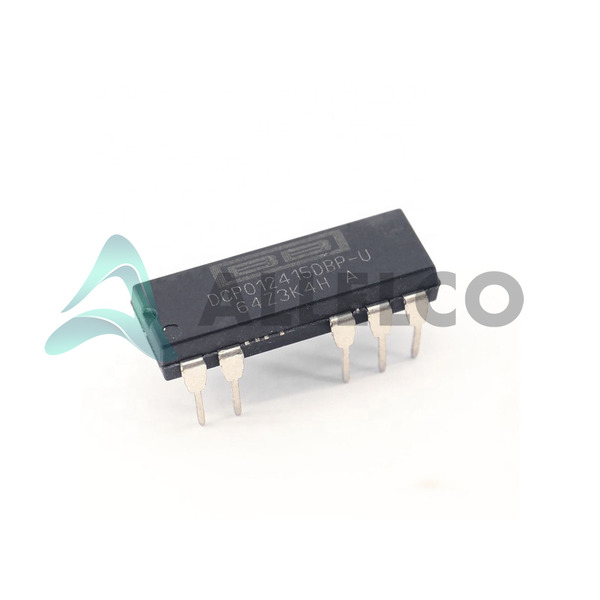

DCP012415DBP-U Image
DCP012415DBP-U Image - 1DCP012415DBP-U Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

DCP012415DBP-U - Texas Instruments

Manufacturer Part Number
DCP012415DBP-U
Manufacturer
Texas Instruments
Allelco Part Number
32D-DCP012415DBP-U
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
DC DC CONVERTER +/-15V 1W
Package
14-SMD Module, 7 Leads
Data sheet
-
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 2446
  • Unit Price: $21.40
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $21.40 $21.40
200+ $8.282 $1,656.40
500+ $7.991 $3,995.50
1000+ $7.847 $7,847.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

DCP012415DBP-U Tech Specifications
Texas Instruments - DCP012415DBP-U technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DCP012415DBP-U

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 3 -
Voltage - Output 2 -15V
Voltage - Output 1 15V
Voltage - Isolation 1 kV
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Type Isolated Module
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Series DCP01B (1W)
Power (Watts) 1 W
Product Attribute Attribute Value
Package / Case 14-SMD Module, 7 Leads
Package Tube
Operating Temperature -40°C ~ 100°C
Number of Outputs 2
Mounting Type Surface Mount
Features OTP, SCP
Efficiency 76%
Current - Output (Max) 33mA, 33mA
Control Features Enable, Active High
Base Product Number DCP012415
Applications ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

DCP012415DBP-U

Manufacturer

Texas Instruments

Introduction

This is a power supply module from Texas Instruments, designed to provide dual regulated DC output voltages of +15V and -15V.

Product Features and Performance

Isolated module with 1kV voltage isolation

Dual outputs of +15V and -15V

Maximum output current of 33mA per output

76% efficiency

Operating temperature range of -40°C to 100°C

Over-temperature protection (OTP) and short-circuit protection (SCP) features

Product Advantages

Compact and surface mount package

High isolation voltage

Robust protection features

Wide operating temperature range

Key Technical Parameters

Input voltage range: 21.6V to 26.4V

Output voltages: +15V and -15V

Maximum output current: 33mA per output

Power rating: 1 Watt

Quality and Safety Features

RoHS3 compliant

Isolated design for safety

Compatibility

Suitable for use in ITE (Information Technology Equipment) applications

Application Areas

Suitable for use in various electronic equipment and devices that require dual regulated DC power supplies

Product Lifecycle

The DCP012415DBP-U is an active product, and Texas Instruments continues to offer it as part of their product lineup.

Key Reasons to Choose This Product

Compact and space-saving design

Robust protection features for reliable operation

Wide operating temperature range for diverse applications

High isolation voltage for safety-critical applications

Efficient power conversion with 76% efficiency

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments DCP012415DBP-U

Product Attribute DCP012415DBP-U/700 DCP011515DBP-U/700 DCP012405BP-U/700 DCP012405BP-U/7G4
Part Number DCP012415DBP-U/700 DCP011515DBP-U/700 DCP012405BP-U/700 DCP012405BP-U/7G4
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Series - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Mounting Type - Surface Mount Through Hole Surface Mount
Size / Dimension - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Current - Output (Max) - - - -
Voltage - Isolation - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Number of Outputs - - - -
Voltage - Output 1 - - - -
Power (Watts) - - - -
Voltage - Output 2 - - - -
Voltage - Input (Min) - - - -
Control Features - - - -
Voltage - Output 3 - - - -
Features - - - Simultaneous Sampling
Efficiency - - - -
Type - - - -
Applications - - - -
Voltage - Input (Max) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
