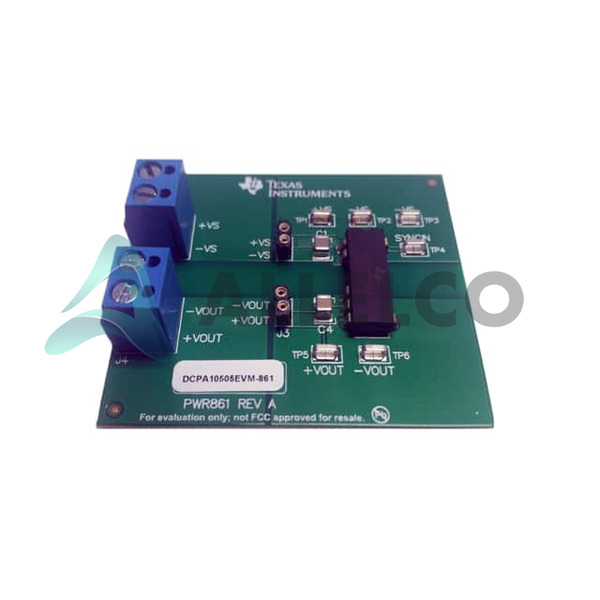

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

DCPA10505EVM-861 - Texas Instruments

Name: Texas Instruments DCPA10505EVM-861
Brand: Texas Instruments
SKU: DCPA10505EVM-861
Price: 58.8 USD
Availability: InStock
Rating: 5 (8 reviews)

Manufacturer Part Number: DCPA10505EVM-861

Manufacturer: Texas Instruments

Allelco Part Number: 98D-DCPA10505EVM-861

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: EVAL MODULE

Package: Bulk

Data sheet: 1.DCPA10505EVM-86.pdf ...

HTML Datasheet
DCPA105xx(D) Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 38209

Unit Price: $58.80
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$58.80	$58.80

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

DCPA10505EVM-861 Tech Specifications
Texas Instruments - DCPA10505EVM-861 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DCPA10505EVM-861

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output	5V
Voltage - Input	4.5V ~ 5.5V
Utilized IC / Part	DCPA10505
Supplied Contents	Board(s)
Series	-
Regulator Topology	-
Power - Output	1 W

Product Attribute	Attribute Value
Package	Bulk
Outputs and Type	1, Isolated
Main Purpose	DC/DC Converter
Frequency - Switching	-
Current - Output	-
Board Type	Fully Populated
Base Product Number	DCPA10505

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8473.30.1180

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments DCPA10505EVM-861

Product Attribute
Part Number	DCPA10505EVM-861	DCPA10512DEVM-868	DCPA10512EVM-861	DCPA10505DEVM-868
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Outputs and Type	1, Isolated	2, Isolated	1, Isolated	2, Isolated
Current - Output	-	-	-	-
Board Type	Fully Populated	Fully Populated	Fully Populated	Fully Populated
Voltage - Input	4.5V ~ 5.5V	4.5V ~ 5.5V	4.5V ~ 5.5V	4.5V ~ 5.5V
Utilized IC / Part	DCPA10505	DCPA10505	DCPA10505	DCPA10505
Frequency - Switching	-	-	-	-
Series	-	-	-	-
Supplied Contents	Board(s)	Board(s)	Board(s)	Board(s)
Power - Output	1 W	1 W	1 W	1 W
Main Purpose	DC/DC Converter	DC/DC Converter	DC/DC Converter	DC/DC Converter
Base Product Number	DCPA10505	DCPA10512	DCPA10512	DCPA10505
Voltage - Output	5V	±12V	12V	±5V
Regulator Topology	-	-	-	-
Package	Bulk	Bulk	Bulk	Bulk

DCPA10505EVM-861 Datasheet PDF

Download DCPA10505EVM-861 pdf datasheets and Texas Instruments documentation for DCPA10505EVM-861 - Texas Instruments.

HTML Datasheet: DCPA105xx(D) Datasheet.pdf
