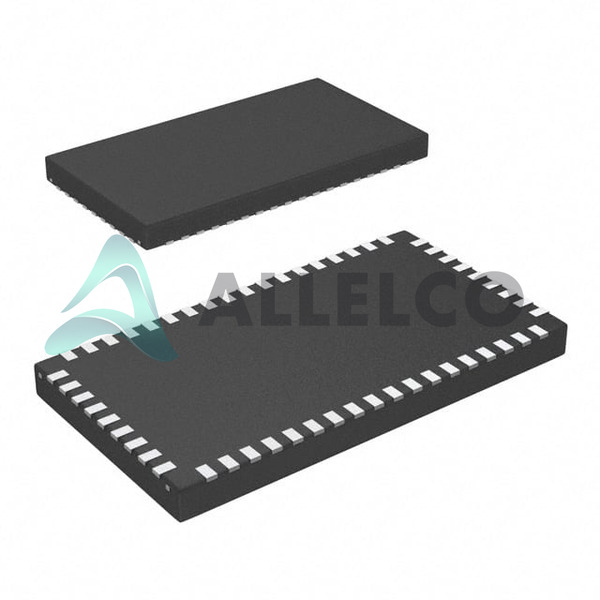

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

DS50PCI402SQ/NOPB - Texas Instruments

Manufacturer Part Number: DS50PCI402SQ/NOPB

Manufacturer: Texas Instruments

Allelco Part Number: 98D-DS50PCI402SQ/NOPB

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC REDRIVER PCIE 8CH 54WQFN

Package: 54-WQFN (10x5.5)

Data sheet: 1.DS50PCI402SQ/NO.pdf ...

PCN Design/Specification
Select Devices Add Cu Alt Wire Base Metal 17/Dec/2.pdf

HTML Datasheet
Cylindrical Battery Holders.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 34081

Unit Price: $12.039
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$12.039	$12.04
200+	$4.659	$931.80
500+	$4.496	$2,248.00
1000+	$4.415	$4,415.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

DS50PCI402SQ/NOPB Tech Specifications
Texas Instruments - DS50PCI402SQ/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DS50PCI402SQ/NOPB

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply	2.375V ~ 2.625V
Type	Buffer, ReDriver
Supplier Device Package	54-WQFN (10x5.5)
Signal Conditioning	Input Equalization, Output De-Emphasis
Series	-
Package / Case	54-WFQFN Exposed Pad
Package	Tape & Reel (TR)
Output	CML
Operating Temperature	-10°C ~ 85°C

Product Attribute	Attribute Value
Number of Channels	8
Mounting Type	Surface Mount
Input	CML
Delay Time	200ps
Data Rate (Max)	5Gbps
Current - Supply	-
Capacitance - Input	10 pF
Base Product Number	DS50PCI402
Applications	PCIe

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	5A991B1
HTSUS	8542.39.0001

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments DS50PCI402SQ/NOPB

Product Attribute
Part Number	DS50PCI402SQ/NOPB	DS50PCI401SQE/NOPB	DS50PCI401SQ/NOPB	DS50PCI401EVK
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Capacitance - Input	10 pF	10 pF	10 pF	-
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Box
Applications	PCIe	PCIe	PCIe	-
Series	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	-
Type	Buffer, ReDriver	Buffer, ReDriver	Buffer, ReDriver	Interface
Current - Supply	-	-	-	-
Package / Case	54-WFQFN Exposed Pad	54-WFQFN Exposed Pad	54-WFQFN Exposed Pad	-
Base Product Number	DS50PCI402	DS50PCI401	DS50PCI401	DS50PCI401
Voltage - Supply	2.375V ~ 2.625V	2.375V ~ 2.625V	2.375V ~ 2.625V	-
Input	CML	CML	CML	-
Data Rate (Max)	5Gbps	5Gbps	5Gbps	-
Delay Time	200ps	200ps	200ps	-
Signal Conditioning	Input Equalization, Output De-Emphasis	Input Equalization, Output De-Emphasis	Input Equalization, Output De-Emphasis	-
Operating Temperature	-10°C ~ 85°C	-10°C ~ 85°C	-10°C ~ 85°C	-
Number of Channels	8	8	8	-
Supplier Device Package	54-WQFN (10x5.5)	54-WQFN (10x5.5)	54-WQFN (10x5.5)	-
Output	CML	CML	CML	-

DS50PCI402SQ/NOPB Datasheet PDF

Download DS50PCI402SQ/NOPB pdf datasheets and Texas Instruments documentation for DS50PCI402SQ/NOPB - Texas Instruments.

PCN Design/Specification: Select Devices Add Cu Alt Wire Base Metal 17/Dec/2.pdf
HTML Datasheet: Cylindrical Battery Holders.pdf
