Manufacturer Part Number

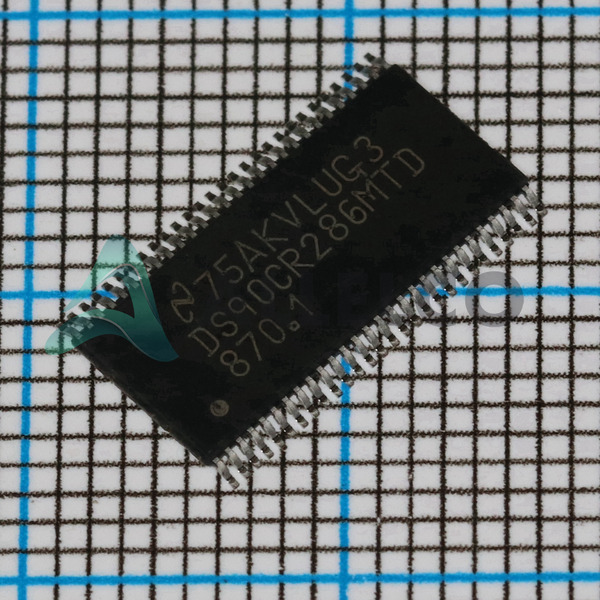

DS90CR286MTD
Manufacturer
Texas Instruments
Introduction
The DS90CR286MTD is a high-performance, low-power LVDS serializer/deserializer (SerDes) device designed for a variety of applications requiring high-speed, point-to-point data transmission.
Product Features and Performance
Supports data rates up to 400Mbps
Converts parallel data to/from LVDS serial data
Integrated clock recovery and generation circuitry
Low power consumption
Adjustable pre-emphasis and equalization
Integrated cable driver/receiver
Product Advantages
High-speed data transmission
Low power consumption
Adjustable signal conditioning for optimal signal integrity
Integrated clock and data recovery
Key Technical Parameters
Operating voltage: 3V to 3.6V
Data rates up to 400Mbps
56-pin TSSOP package
RoHS3 compliant
Quality and Safety Features
Reliable LVDS technology
Robust design for industrial and commercial applications
Compliant with relevant safety and regulatory standards
Compatibility
Compatible with a wide range of LVDS-based systems and devices
Application Areas
Video and display interfaces
High-speed data communication links
Industrial automation and control systems
Medical imaging equipment
Telecommunications equipment
Product Lifecycle
This product is currently in production and is not nearing discontinuation.
Replacement or upgrade options may be available from Texas Instruments or other manufacturers.
Key Reasons to Choose This Product
High-speed data transmission capabilities
Low power consumption for energy-efficient operation
Adjustable signal conditioning for optimal signal integrity
Integrated clock and data recovery for simplified system design
Robust design and compliance with relevant standards for reliable performance in various applications
