HomeProductsCircuit ProtectionTVS - DiodesESDS314DBVR

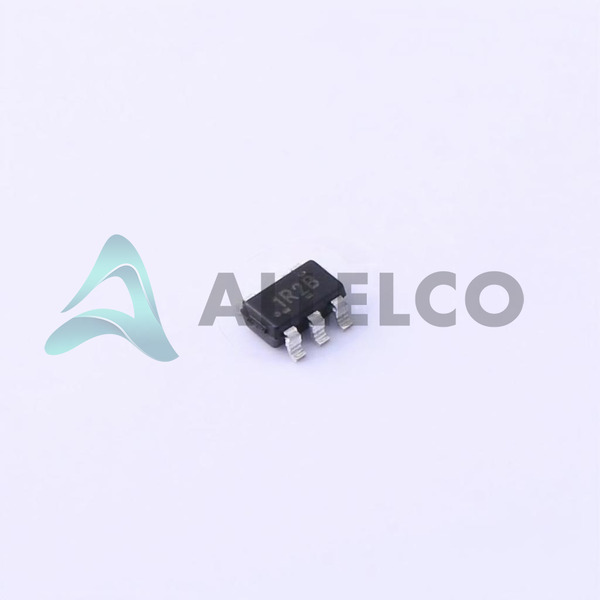

ESDS314DBVR Image
ESDS314DBVR Image - 1ESDS314DBVR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ESDS314DBVR - Texas Instruments

Manufacturer Part Number
ESDS314DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-ESDS314DBVR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
TVS DIODE 3.6VWM 6.5VC SOT23-5
Package
SOT-23-5
Data sheet
1.ESDS314DBVR.pdf ...
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 178910
  • Unit Price: $0.228
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.228 $1.14
50+ $0.185 $9.25
150+ $0.167 $25.05
500+ $0.144 $72.00
3000+ $0.133 $399.00
6000+ $0.127 $762.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ESDS314DBVR Tech Specifications
Texas Instruments - ESDS314DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ESDS314DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Reverse Standoff (Typ) 3.6V (Max)
Voltage - Clamping (Max) @ Ipp 6.5V (Typ)
Voltage - Breakdown (Min) 4.5V
Unidirectional Channels 4
Type Zener
Supplier Device Package SOT-23-5
Series -
Power Line Protection No
Product Attribute Attribute Value
Power - Peak Pulse 170W
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Current - Peak Pulse (10/1000µs) 25A (8/20µs)
Capacitance @ Frequency 4.5pF @ 1MHz
Base Product Number ESDS314
Applications General Purpose

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080

Parts Introduction

Manufacturer Part Number

ESDS314DBVR

Manufacturer

Texas Instruments

Introduction

The ESDS314DBVR is a transient voltage suppressor designed for protecting sensitive electronics from electrostatic discharges and voltage spikes.

Product Features and Performance

Unidirectional Zener diodes for TVS protection

Four-channel device for multi-line protection

Operating Temperature range from -40°C to 125°C

Surface Mount SC-74A, SOT-753 package for compact PCB design

Peak Pulse Power of 170W for effective transient suppression

Low Capacitance of 4.5pF at 1MHz ensuring high-speed signal integrity

Product Advantages

Enhanced ESD protection for sensitive components

Optimized for high-speed interface protection

Low dynamic resistance and clamping voltage

Support for multiple lines with a single device

Key Technical Parameters

Voltage - Reverse Standoff: 3.6V (Max)

Voltage - Breakdown (Min): 4.5V

Voltage - Clamping: 6.5V (Typ) @ Ipp

Current - Peak Pulse: 25A (8/20µs)

Power - Peak Pulse: 170W

Capacitance @ Frequency: 4.5pF @ 1MHz

Mounting Type: Surface Mount

Quality and Safety Features

Robust surge and ESD protection for long-term reliability

Compliant with industry-standard safety and quality norms

Compatibility

Compatible with a wide range of electronic circuits requiring TVS

Fits SOT-23-5 package mounts for easy replacement and design-in

Application Areas

Ideal for general-purpose applications in consumer electronics, automotive, industrial, and communication systems

Product Lifecycle

Active product status with no indication of nearing discontinuation

Availability of replacements or upgrades within Texas Instruments' portfolio

Several Key Reasons to Choose This Product

Provides high surge protection capabilities with a clamping voltage of 6.5V

Ensures device safety and reliability across a wide temperature range

Reduces the need for multiple discrete components with its integrated four-channel design

Offers a balance between protection and signal integrity with low capacitance

Long-term product availability with support from a reputable semiconductor manufacturer, Texas Instruments
