HomeProductsIntegrated Circuits (ICs)Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsINA180B2IDBVT

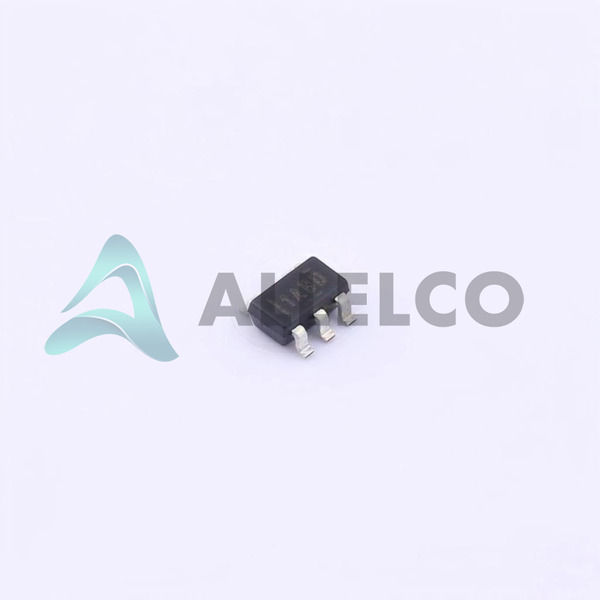

INA180B2IDBVT Image
INA180B2IDBVT Image - 1INA180B2IDBVT Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

INA180B2IDBVT - Texas Instruments

Manufacturer Part Number
INA180B2IDBVT
Manufacturer
Texas Instruments
Allelco Part Number
98D-INA180B2IDBVT
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC CURR SENSE 1 CIRCUIT SOT23-5
Package
SOT-23-5
Data sheet
1.INA180B2IDBVT.pdf ...

PCN Assembly/Origin

Assembly 28/Mar/2023.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 30547
  • Unit Price: $0.721
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.721 $0.72
10+ $0.608 $6.08
30+ $0.547 $16.41
250+ $0.477 $119.25
500+ $0.447 $223.50
1000+ $0.433 $433.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

INA180B2IDBVT Tech Specifications
Texas Instruments - INA180B2IDBVT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - INA180B2IDBVT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply Span (Min) 2.7 V
Voltage - Supply Span (Max) 5.5 V
Voltage - Input Offset 100 µV
Supplier Device Package SOT-23-5
Slew Rate 2V/µs
Series -
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Product Attribute Attribute Value
Output Type Rail-to-Rail
Operating Temperature -40°C ~ 125°C
Number of Circuits 1
Mounting Type Surface Mount
Current - Supply 260µA
Current - Input Bias 80 µA
Base Product Number INA180
Amplifier Type Current Sense
-3db Bandwidth 350 kHz

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments INA180B2IDBVT

Product Attribute INA180B2IDBVT 0603J2000470FUT
Part Number INA180B2IDBVT 0603J2000470FUT
Manufacturer Texas Instruments Knowles Syfer
Current - Input Bias 80 µA -
Mounting Type Surface Mount Surface Mount, MLCC
Package / Case SC-74A, SOT-753 0603 (1608 Metric)
Voltage - Input Offset 100 µV -
Output Type Rail-to-Rail -
Supplier Device Package SOT-23-5 -
Operating Temperature -40°C ~ 125°C -55°C ~ 125°C
Voltage - Supply Span (Min) 2.7 V -
Package Tape & Reel (TR) Tape & Reel (TR)
Number of Circuits 1 -
Voltage - Supply Span (Max) 5.5 V -
Base Product Number INA180 0603J
Current - Supply 260µA -
Series - -
-3db Bandwidth 350 kHz -
Amplifier Type Current Sense -
Slew Rate 2V/µs -

INA180B2IDBVT Datasheet PDF

Download INA180B2IDBVT pdf datasheets and Texas Instruments documentation for INA180B2IDBVT - Texas Instruments.

PCN Assembly/Origin
Assembly 28/Mar/2023.pdf
