HomeProductsIntegrated Circuits (ICs)PMIC - Current Regulation/ManagementINA381A1IDSGR

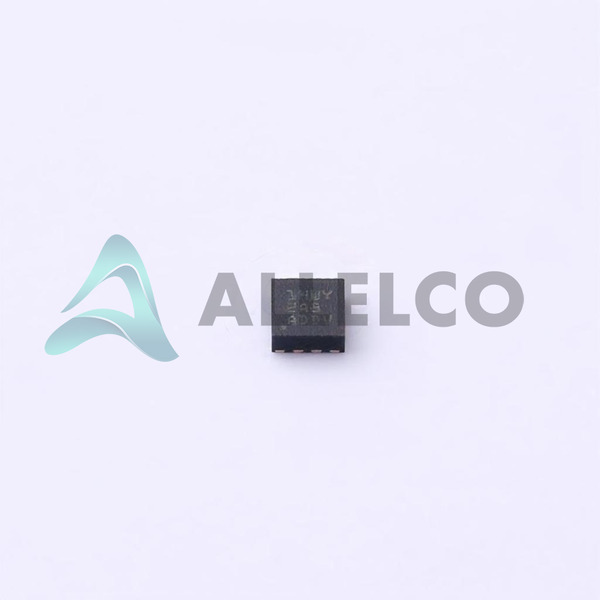

INA381A1IDSGR Image
INA381A1IDSGR Image - 1INA381A1IDSGR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

INA381A1IDSGR - Texas Instruments

Manufacturer Part Number
INA381A1IDSGR
Manufacturer
Texas Instruments
Allelco Part Number
32D-INA381A1IDSGR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC CURRENT SENSE 1% 8WSON
Package
8-WSON (2x2)
Data sheet
1.INA381A1IDSGR.pdf ...

HTML Datasheet

INA381Ax Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 163430
  • Unit Price: $0.401
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.401 $0.40
10+ $0.335 $3.35
30+ $0.302 $9.06
100+ $0.269 $26.90
500+ $0.24 $120.00
1000+ $0.229 $229.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

INA381A1IDSGR Tech Specifications
Texas Instruments - INA381A1IDSGR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - INA381A1IDSGR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Input 0V ~ 26V
Supplier Device Package 8-WSON (2x2)
Series Zero-Drift
Sensing Method High/Low-Side
Package / Case 8-WFDFN Exposed Pad
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Function Current Sense
Current - Output -
Base Product Number INA381
Accuracy ±1%

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

INA381A1IDSGR

Manufacturer

Texas Instruments

Introduction

The INA381A1IDSGR is a part of Texas Instruments' Zero-Drift series, specialized in power management specifically in current regulation and management.

Product Features and Performance

Integrated comparator and current-sense amplifier

High-accuracy current sensing with ±1% accuracy

Capable of sensing both high-side and low-side

Wide input voltage range from 0V to 26V

Operating temperature range from -40°C to 125°C

Surface mount package for easy PCB integration

Product Advantages

Enhanced reliability with zero-drift technology

High accuracy ensures precise current measurement

Versatile sensing capability improves system design flexibility

Key Technical Parameters

Accuracy: ±1%

Voltage Input: 0V ~ 26V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package / Case: 8-WFDFN Exposed Pad

Supplier Device Package: 8-WSON (2x2)

Quality and Safety Features

Built-in error reporting features for system safety enhancement

Robust construction suitable for harsh environments

Compatibility

Compatible with various microcontroller units (MCUs) and Digital Signal Processors (DSPs) due to standard voltage and sensing range

Application Areas

Power supply units

Battery management systems

Overcurrent protection systems

Portable devices monitoring

Product Lifecycle

Current product status is active

Not nearing discontinuation, with ongoing support and availability

Several Key Reasons to Choose This Product

High precision with ±1% accuracy ideal for critical applications

Wide input voltage range accommodating varied power systems

Zero-drift technology guarantees long-term stability and reliability

Flexible application range from industrial to consumer electronics

Texas Instruments' reputable manufacturing ensures quality and durability

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments INA381A1IDSGR

Product Attribute INA381A1IDSGT INA381A1IDGSR INA381A2IDSGR INA381A2IDSGT
Part Number INA381A1IDSGT INA381A1IDGSR INA381A2IDSGR INA381A2IDSGT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Sensing Method - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Series - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Input - - - -
Accuracy - - - -
Current - Output - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Function - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Package - Tape & Reel (TR) Tube Tape & Reel (TR)

INA381A1IDSGR Datasheet PDF

Download INA381A1IDSGR pdf datasheets and Texas Instruments documentation for INA381A1IDSGR - Texas Instruments.

HTML Datasheet
INA381Ax Datasheet.pdf
