HomeProductsIsolatorsDigital IsolatorsISO7140FCCDBQR

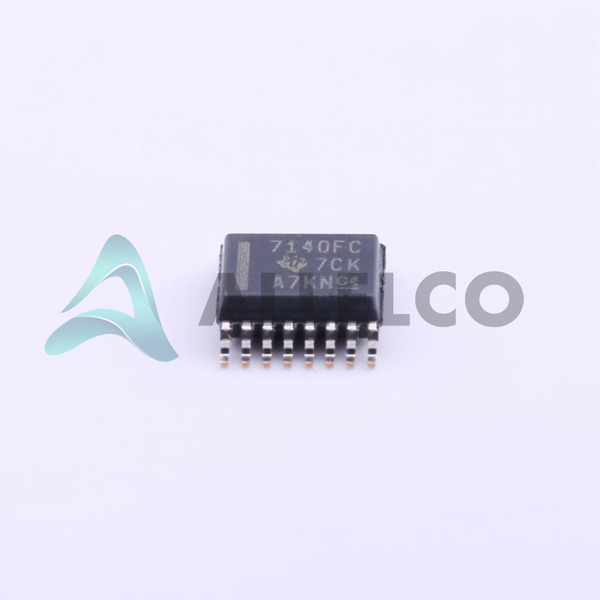

ISO7140FCCDBQR Image
ISO7140FCCDBQR Image - 1ISO7140FCCDBQR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ISO7140FCCDBQR - Texas Instruments

Manufacturer Part Number
ISO7140FCCDBQR
Manufacturer
Texas Instruments
Allelco Part Number
32D-ISO7140FCCDBQR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
DGTL ISO 2500VRMS 4CH GP 16SSOP
Package
16-SSOP
Data sheet
1.ISO7140FCCDBQR.pdf ...

HTML Datasheet

ISO71xx(F)CC.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 11214
  • Unit Price: $2.391
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $2.391 $2.39
10+ $2.341 $23.41
30+ $2.306 $69.18
100+ $2.273 $227.30
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ISO7140FCCDBQR Tech Specifications
Texas Instruments - ISO7140FCCDBQR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ISO7140FCCDBQR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 2.7V ~ 5.5V
Voltage - Isolation 2500Vrms
Type General Purpose
Technology Capacitive Coupling
Supplier Device Package 16-SSOP
Series -
Rise / Fall Time (Typ) 2ns, 2ns
Pulse Width Distortion (Max) 3ns
Propagation Delay tpLH / tpHL (Max) 35ns, 35ns
Package / Case 16-SSOP (0.154", 3.90mm Width)
Product Attribute Attribute Value
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 125°C
Number of Channels 4
Mounting Type Surface Mount
Isolated Power No
Inputs - Side 1/Side 2 4/0
Data Rate 50Mbps
Common Mode Transient Immunity (Min) 25kV/µs
Channel Type Unidirectional
Base Product Number ISO7140

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

ISO7140FCCDBQR

Manufacturer

Texas Instruments

Introduction

Compact, high-speed digital isolator with 4 channels for reliable signal transmission

Product Features and Performance

4 channel digital isolator

Capacitive coupling technology for high-speed data transfer

Common mode transient immunity up to 25kV/μs

Rise/fall time of 2ns

Propagation delay of 35ns (max)

Pulse width distortion of 3ns (max)

Data rate up to 50Mbps

Wide operating voltage range of 2.7V to 5.5V

Product Advantages

Reliable signal transmission with high isolation voltage of 2500Vrms

Compact 16-SSOP package

RoHS3 compliant

Wide operating temperature range of -40°C to 125°C

No need for isolated power supply

Key Technical Parameters

Number of channels: 4

Isolation voltage: 2500Vrms

Rise/fall time: 2ns

Propagation delay: 35ns (max)

Pulse width distortion: 3ns (max)

Data rate: 50Mbps

Operating voltage: 2.7V to 5.5V

Operating temperature: -40°C to 125°C

Quality and Safety Features

RoHS3 compliant

High common mode transient immunity of 25kV/μs

Compatibility

Surface mount package

Tape and reel packaging

Application Areas

Industrial automation

Motor control

Power supplies

Instrumentation

Medical equipment

Transportation

Product Lifecycle

Current product, no discontinuation planned

Replacement and upgrade options available

Key Reasons to Choose This Product

Reliable signal transmission with high isolation voltage

High-speed data transfer with fast rise/fall times and low propagation delay

Compact size and wide operating temperature range

No need for isolated power supply

RoHS3 compliance and high common mode transient immunity

Suitable for a wide range of industrial and medical applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments ISO7140FCCDBQR

Product Attribute ISO7140CCDBQR ISO7141FCCDBQR ISO7140FCCDBQ ISO7141FCCDBQ
Part Number ISO7140CCDBQR ISO7141FCCDBQR ISO7140FCCDBQ ISO7141FCCDBQ
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Isolation - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Propagation Delay tpLH / tpHL (Max) - - - -
Number of Channels - - - -
Channel Type - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Pulse Width Distortion (Max) - - - -
Data Rate - - - -
Isolated Power - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Inputs - Side 1/Side 2 - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Type - - - -
Technology - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Series - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Common Mode Transient Immunity (Min) - - - -
Voltage - Supply - - - -
Rise / Fall Time (Typ) - - - -

ISO7140FCCDBQR Datasheet PDF

Download ISO7140FCCDBQR pdf datasheets and Texas Instruments documentation for ISO7140FCCDBQR - Texas Instruments.

HTML Datasheet
ISO71xx(F)CC.pdf
