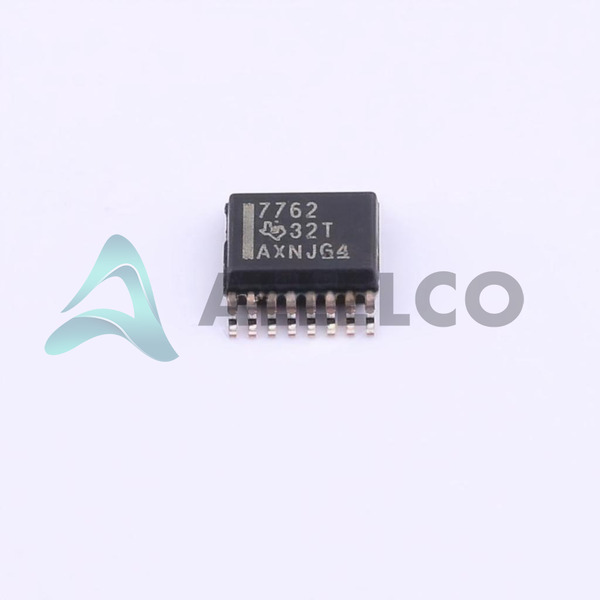

ISO7762DBQR Image
ISO7762DBQR Image - 1ISO7762DBQR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ISO7762DBQR - Texas Instruments

Manufacturer Part Number
ISO7762DBQR
Manufacturer
Texas Instruments
Allelco Part Number
32D-ISO7762DBQR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
DGTL ISO 3000VRMS 6CH GP 16SSOP
Package
16-SSOP
Data sheet
1.ISO7762DBQR.pdf ...

HTML Datasheet

ISO7760-63 Datasheet.pdf

Application Notes

Isolation Glossary.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 16459
  • Unit Price: $1.447
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.447 $1.45
10+ $1.261 $12.61
30+ $1.145 $34.35
100+ $1.026 $102.60
500+ $0.972 $486.00
1000+ $0.949 $949.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ISO7762DBQR Tech Specifications
Texas Instruments - ISO7762DBQR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ISO7762DBQR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 2.25V ~ 5.5V
Voltage - Isolation 3000Vrms
Type General Purpose
Technology Capacitive Coupling
Supplier Device Package 16-SSOP
Series ISO776x
Rise / Fall Time (Typ) 1.1ns, 1.4ns
Pulse Width Distortion (Max) 4.9ns
Propagation Delay tpLH / tpHL (Max) 16ns, 16ns
Package / Case 16-SSOP (0.154", 3.90mm Width)
Product Attribute Attribute Value
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 125°C
Number of Channels 6
Mounting Type Surface Mount
Isolated Power No
Inputs - Side 1/Side 2 4/2
Data Rate 100Mbps
Common Mode Transient Immunity (Min) 85kV/µs
Channel Type Unidirectional
Base Product Number ISO7762

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

ISO7762DBQR

Manufacturer

Texas Instruments

Introduction

Digital Isolators

Provide robust galvanic isolation between digital systems

Product Features and Performance

6 channels

Rise/Fall Time (Typ): 1.1ns, 1.4ns

Pulse Width Distortion (Max): 4.9ns

Propagation Delay tpLH / tpHL (Max): 16ns, 16ns

Common Mode Transient Immunity (Min): 85kV/s

Data Rate: 100Mbps

Product Advantages

Capacitive Coupling Technology

Wide Operating Temperature Range: -55°C to 125°C

Compact 16-SSOP Package

Tape & Reel Packaging

Key Technical Parameters

Isolation Voltage: 3000Vrms

Supply Voltage: 2.25V to 5.5V

Unidirectional Channel Type

Quality and Safety Features

RoHS3 Compliant

Compatibility

Surface Mount Mounting Type

Application Areas

Suitable for a variety of digital systems that require robust galvanic isolation

Product Lifecycle

Current product, no information on discontinuation or replacements

Key Reasons to Choose This Product

High Common Mode Transient Immunity

Fast Signal Propagation

Wide Operating Temperature Range

Compact and Surface Mount Packaging

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments ISO7762DBQR

Product Attribute ISO7762FQDBQRQ1 ISO7762FDBQR ISO7761FQDBQRQ1 ISO7762DBQ
Part Number ISO7762FQDBQRQ1 ISO7762FDBQR ISO7761FQDBQRQ1 ISO7762DBQ
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Channel Type - - - -
Voltage - Isolation - - - -
Isolated Power - - - -
Propagation Delay tpLH / tpHL (Max) - - - -
Inputs - Side 1/Side 2 - - - -
Common Mode Transient Immunity (Min) - - - -
Pulse Width Distortion (Max) - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Number of Channels - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Mounting Type - Surface Mount Through Hole Surface Mount
Voltage - Supply - - - -
Technology - - - -
Rise / Fall Time (Typ) - - - -
Data Rate - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Type - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Series - - - -

ISO7762DBQR Datasheet PDF

Download ISO7762DBQR pdf datasheets and Texas Instruments documentation for ISO7762DBQR - Texas Instruments.

Design Resources
Digital Isolator Design Guide.pdf
HTML Datasheet
ISO7760-63 Datasheet.pdf
Application Notes
Isolation Glossary.pdf
