Manufacturer Part Number
LM193H
Manufacturer
Texas Instruments
Introduction
High-Speed, Low-Power Dual Comparators
Product Features and Performance
High-speed operation with typical propagation delay of 700ns
Low power consumption with typical quiescent current of 2.5mA
Wide supply voltage range from 2V to 36V (single supply) or ±1V to ±18V (dual supply)
Input offset voltage of 5mV (max) at 30V
Input bias current of 0.1μA (max) at 5V
Output can drive up to 16mA at 5V
Product Advantages
Ideal for battery-powered and portable applications
Suitable for high-speed operation in digital and analog circuits
Provides a cost-effective solution for dual comparator requirements
Key Technical Parameters

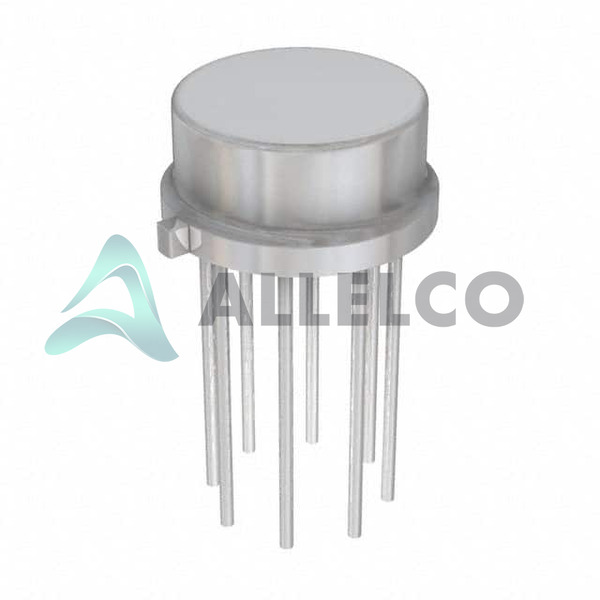

Package: TO-99-8 Metal Can
Mounting Type: Through Hole
Output Type: CMOS, DTL, ECL, MOS, Open-Collector, TTL
Operating Temperature: -55°C to 125°C
Quality and Safety Features
RoHS3 compliant
Compatibility
Can be used in a wide range of digital and analog circuits requiring high-speed, low-power dual comparators
Application Areas
Battery-powered and portable devices
Digital and analog circuit design
Instrumentation and control systems
Product Lifecycle
This product is an established and widely used dual comparator IC from Texas Instruments. It is not nearing discontinuation, and replacement or upgrade options are available.
Key Reasons to Choose This Product
High-speed operation with low power consumption
Wide supply voltage range for versatile applications
Precise input offset voltage and low input bias current
Ability to drive high output current
Proven reliability and compatibility in a wide range of circuits
