HomeProductsIntegrated Circuits (ICs)PMIC - LED DriversLM27951SD

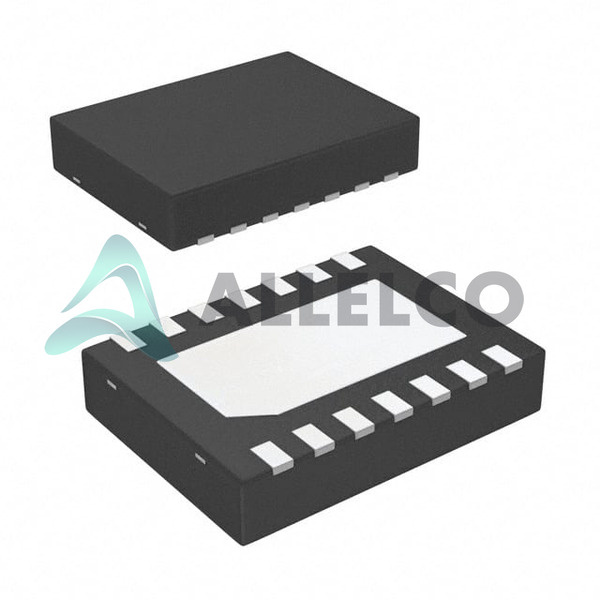

LM27951SD Image
LM27951SD Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

LM27951SD - Texas Instruments

Manufacturer Part Number
LM27951SD
Manufacturer
Texas Instruments
Allelco Part Number
32D-LM27951SD
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC LED DRV RGLTR PWM 30MA 14WSON
Package
14-WSON (4x3)
Data sheet
1.LM27951SD.pdf ...

HTML Datasheet

LM27951.pdf

PCN Design/Specification

Wire Base Metal 05/Oct/2016.pdf
Compare
Our certification
In stock: 34394

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

LM27951SD Tech Specifications
Texas Instruments - LM27951SD technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LM27951SD

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Min) 2.8V
Voltage - Supply (Max) 5.5V
Voltage - Output 2.5V ~ 3.9V
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Supplier Device Package 14-WSON (4x3)
Series -
Package / Case 14-WFDFN Exposed Pad
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 4
Mounting Type Surface Mount
Internal Switch(s) Yes
Frequency 750kHz
Dimming PWM
Current - Output / Channel 30mA
Base Product Number LM27951
Applications Backlight

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

LM27951SD

Manufacturer

Texas Instruments

Introduction

The LM27951SD is a power management integrated circuit (PMIC) designed for LED driving applications, specifically optimized for backlighting solutions.

Product Features and Performance

Integrated switch mode charge pump regulator

Efficient power conversion

4 output channels for multiple LED driving

Supports PWM dimming for brightness control

High-frequency operation at 750kHz minimizes external components

Wide input voltage range from 2.8V to 5.5V

Adjustable output voltage from 2.5V to 3.9V

Up to 30mA current output per channel

Product Advantages

High efficiency due to switched capacitor topology

Compact solution for LED backlighting

Allows for small form factor designs

Low electromagnetic interference (EMI)

Key Technical Parameters

Topology: Switched Capacitor (Charge Pump)

Internal Switch(s): Yes

Number of Outputs: 4

Voltage - Supply (Min): 2.8V

Voltage - Supply (Max): 5.5V

Voltage - Output: 2.5V ~ 3.9V

Current - Output / Channel: 30mA

Frequency: 750kHz

Dimming: PWM

Quality and Safety Features

Built-in over-temperature protection

Under-voltage lockout (UVLO)

Compatibility

Designed to be used with a range of LEDs for backlight applications

Surface mount technology for easy integration into system designs

Application Areas

Backlighting for portable devices

LCD display illumination

Keypad backlighting for mobile devices

Product Lifecycle

Product Status: Not For New Designs

Potential near-end-of-life with a focus on existing designs rather than new applications

Replacements or upgrades may be available from Texas Instruments

Several Key Reasons to Choose This Product

Efficient power management for LED backlighting

Supports wide input voltage suitable for battery-powered devices

Multiphase charge pump for reduced input ripple and improved stability

Low power consumption enhances battery life

Flexible dimming options to adjust brightness levels

Robust thermal management features ensure reliable operation in various environments

Ease of integration with compact package and surface mount design

Parts with Similar Specifications
