Manufacturer Part Number

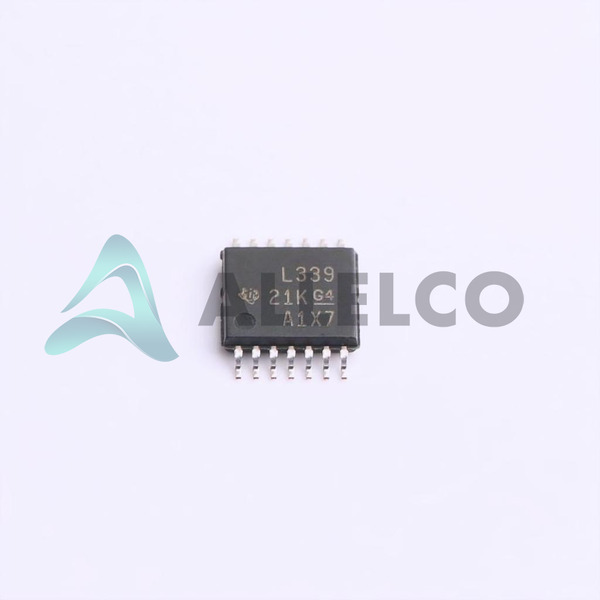

LM339PW
Manufacturer
Texas Instruments
Introduction
The LM339PW is a quad voltage comparator IC that offers high precision and low power consumption. It is a general-purpose device suitable for a wide range of applications, including industrial control systems, instrumentation, and consumer electronics.
Product Features and Performance
Quad voltage comparator in a single package
Wide supply voltage range: 2V to 30V (single supply) or ±1V to ±15V (dual supply)
Low input offset voltage: 5mV (max) at 30V
Low input bias current: 0.25µA (max) at 5V
High output current: 20mA (typical)
Low quiescent current: 2.5mA (max)
Operates over a wide temperature range: 0°C to 70°C
Product Advantages
Compact design in a space-saving TSSOP package
Versatile functionality with four independent comparators
Excellent performance characteristics for precise voltage comparisons
Low power consumption for energy-efficient applications
Key Reasons to Choose This Product
Reliable and consistent performance over a wide range of operating conditions
Suitable for a diverse range of applications, making it a versatile solution
Cost-effective and efficient design for budget-conscious projects
Backed by the reputation and technical support of Texas Instruments
Quality and Safety Features
Rigorous quality control and testing during manufacturing
Compliance with relevant industry standards and regulations
Compatibility
The LM339PW is compatible with a variety of microcontrollers, sensors, and other electronic components commonly used in industrial, instrumentation, and consumer electronics applications.
Application Areas
Industrial control systems
Instrumentation and measurement equipment
Consumer electronics
Automotive electronics
Power management circuits
Product Lifecycle
The LM339PW is a mature product that is currently in the last time buy phase. There are several equivalent or alternative models available from Texas Instruments, such as the LM239, LM139, and LM2901. Customers are advised to contact our website's sales team for the latest product information and availability.
