HomeProductsDevelopment Boards, Kits, ProgrammersEvaluation Boards - DC/DC & AC/DC (Off-Line) SMPSLM43602PWPEVM

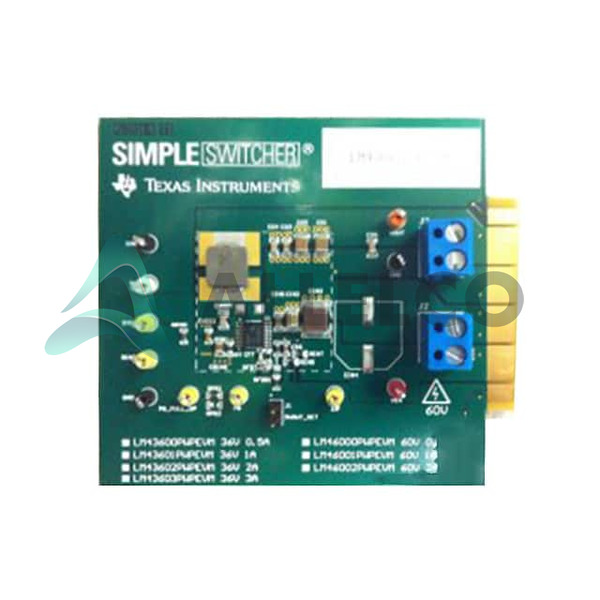

LM43602PWPEVM Image
LM43602PWPEVM Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

LM43602PWPEVM - Texas Instruments

Manufacturer Part Number
LM43602PWPEVM
Manufacturer
Texas Instruments
Allelco Part Number
98D-LM43602PWPEVM
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
EVAL MODULE FOR LM43602
Package
Box
Data sheet
1.LM43602PWPEVM.pdf ...

HTML Datasheet

LM43602 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 28398
  • Unit Price: $58.80
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $58.80 $58.80
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

LM43602PWPEVM Tech Specifications
Texas Instruments - LM43602PWPEVM technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LM43602PWPEVM

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 3.3V
Voltage - Input 3.5V ~ 36V
Utilized IC / Part LM43602
Supplied Contents Board(s)
Series SIMPLE SWITCHER®
Regulator Topology Buck
Product Attribute Attribute Value
Package Box
Outputs and Type 1, Non-Isolated
Main Purpose DC/DC, Step Down
Frequency - Switching 500kHz
Current - Output 2A
Board Type Fully Populated
Base Product Number LM43602

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments LM43602PWPEVM

Product Attribute LM43602PWPEVM LM43603DSUEVM LM43602AQPWPRQ1 LM43602SPWPRQ1
Part Number LM43602PWPEVM LM43603DSUEVM LM43602AQPWPRQ1 LM43602SPWPRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Main Purpose DC/DC, Step Down DC/DC, Step Down - -
Voltage - Output 3.3V 5V - -
Current - Output 2A 3A 2A 2A
Package Box Bulk Tape & Reel (TR) Bulk
Base Product Number LM43602 LM4360 LM43602 -
Regulator Topology Buck Buck - -
Frequency - Switching 500kHz 1MHz 200kHz ~ 2.2MHz 200kHz ~ 2.2MHz
Voltage - Input 3.5V ~ 36V 3.5V ~ 36V - -
Outputs and Type 1, Non-Isolated 1, Non-Isolated - -
Series SIMPLE SWITCHER® SIMPLE SWITCHER® Automotive, AEC-Q100, SIMPLE SWITCHER® -
Supplied Contents Board(s) Board(s) - -
Board Type Fully Populated Fully Populated - -
Utilized IC / Part LM43602 LM43603 - -
