HomeProductsDevelopment Boards, Kits, ProgrammersEvaluation Boards - DC/DC & AC/DC (Off-Line) SMPSLM5022EVAL/NOPB

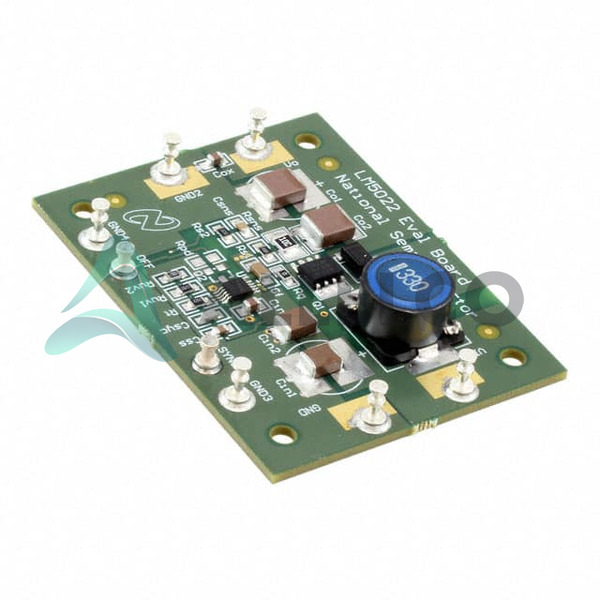

LM5022EVAL/NOPB Image
LM5022EVAL/NOPB Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

LM5022EVAL/NOPB - Texas Instruments

Manufacturer Part Number
LM5022EVAL/NOPB
Manufacturer
Texas Instruments
Allelco Part Number
98D-LM5022EVAL/NOPB
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
35,878 pcs available, New & Original
Parts Description
EVAL BOARD FOR LM5022
Package
Box
Data sheet
LM5022EVAL/NOPB.pdf

HTML Datasheet

LM5022 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 35878
  • Unit Price: $58.80
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $58.80 $58.80
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

LM5022EVAL/NOPB Tech Specifications
Texas Instruments - LM5022EVAL/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LM5022EVAL/NOPB

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 40V
Voltage - Input 9V ~ 16V
Utilized IC / Part LM5022
Supplied Contents Board(s)
Series -
Regulator Topology Boost
Product Attribute Attribute Value
Package Box
Outputs and Type 1, Non-Isolated
Main Purpose DC/DC, Step Up
Frequency - Switching 500kHz
Current - Output 500mA
Board Type Fully Populated
Base Product Number LM5022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments LM5022EVAL/NOPB

Product Attribute LM5022EVAL/NOPB LM5022BSTBLDT/NOPB LM5022EVAL LM5021MMX-1
Part Number LM5022EVAL/NOPB LM5022BSTBLDT/NOPB LM5022EVAL LM5021MMX-1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Output 40V - 40V -
Current - Output 500mA - 500mA -
Package Box Box Box Tape & Reel (TR)
Series - - - -
Supplied Contents Board(s) Board(s) Board(s) -
Board Type Fully Populated Bare (Unpopulated) Fully Populated -
Outputs and Type 1, Non-Isolated - 1, Non-Isolated -
Main Purpose DC/DC, Step Up - DC/DC, Step Up -
Utilized IC / Part LM5022 - LM5022 -
Base Product Number LM5022 LM5022 LM5022 LM5021
Frequency - Switching 500kHz - 500kHz Up to 1MHz
Voltage - Input 9V ~ 16V - 9V ~ 16V -
Regulator Topology Boost - Boost -

LM5022EVAL/NOPB Datasheet PDF
