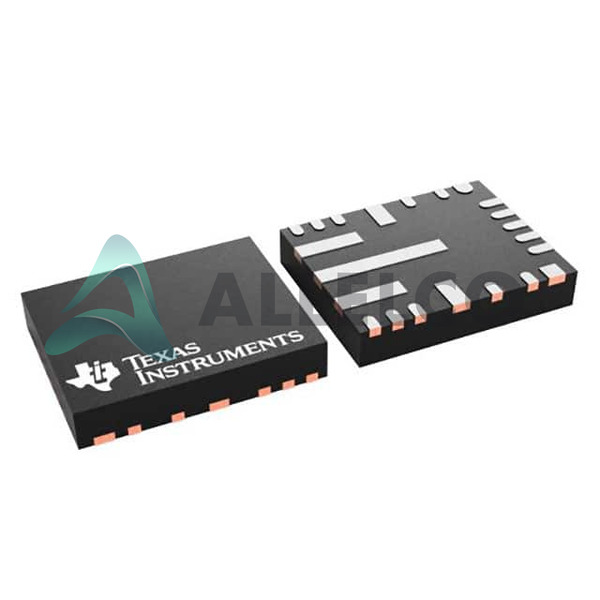

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

LMS3635LQURNLRQ1 - Texas Instruments

Manufacturer Part Number: LMS3635LQURNLRQ1

Manufacturer: Texas Instruments

Allelco Part Number: 98D-LMS3635LQURNLRQ1

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC REG BUCK 5V 3.5A 22VQFN

Package: 22-VQFN-HR (5x4)

Data sheet: 1.LMS3635LQURNLRQ.pdf ...

HTML Datasheet
LMS3635-Q1, LMS3655-Q1.pdf

~~Compare~~

Our certification

In stock: 3000

Unit Price: $3.311
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$3.311	$3.31

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

LMS3635LQURNLRQ1 Tech Specifications
Texas Instruments - LMS3635LQURNLRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LMS3635LQURNLRQ1

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage - Input (Min)	3.9V
Voltage - Input (Max)	36V
Topology	Buck
Synchronous Rectifier	Yes
Supplier Device Package	22-VQFN-HR (5x4)
Series	Automotive, AEC-Q100
Package / Case	22-VFQFN

Product Attribute	Attribute Value
Package	Tape & Reel (TR)
Output Type	Fixed
Output Configuration	Positive
Operating Temperature	-40°C ~ 150°C (TJ)
Number of Outputs	1
Mounting Type	Surface Mount, Wettable Flank
Function	Step-Down
Frequency - Switching	2.1MHz
Current - Output	3.5A

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Not applicable
Moisture Sensitivity Level (MSL)	2 (1 Year)
ECCN	EAR99
HTSUS	8542.39.0001

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments LMS3635LQURNLRQ1

Product Attribute
Part Number	LMS3635LQRNLRQ1	LMS3635MQURNLRQ1	LMS36353QRNLRQ1	LMS3635AQRNLRQ1
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Output Configuration	-	-	-	-
Function	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Voltage - Input (Max)	-	-	-	-
Voltage - Output (Min/Fixed)	-	-	-	-
Frequency - Switching	-	-	-	-
Voltage - Output (Max)	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Current - Output	-	-	-	-
Voltage - Input (Min)	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Output Type	-	Current - Unbuffered	Voltage - Buffered	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Topology	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Series	-	-	-	-
Synchronous Rectifier	-	-	-	-
Number of Outputs	-	-	-	-

LMS3635LQURNLRQ1 Datasheet PDF

Download LMS3635LQURNLRQ1 pdf datasheets and Texas Instruments documentation for LMS3635LQURNLRQ1 - Texas Instruments.

HTML Datasheet: LMS3635-Q1, LMS3655-Q1.pdf
