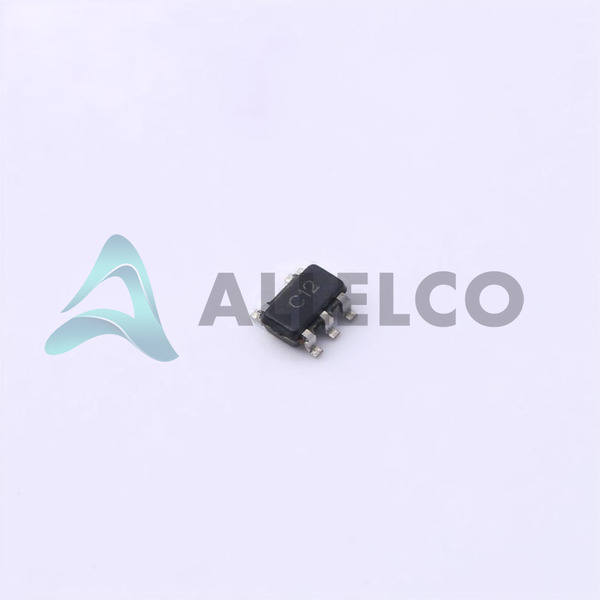

Manufacturer Part Number
LMV331M5
Manufacturer
Texas Instruments
Introduction
Compact single general purpose linear comparator for electronic applications
Product Features and Performance
General purpose comparator
Single element configuration
Compatible with CMOS, Open-Collector, TTL output types
Product Advantages
Low input offset voltage
Minimal input bias current
High current drive capability at output
Low current consumption
Wide operating temperature range
Key Technical Parameters
Supply Voltage Range 2.7V to 5.5V
Input Offset Voltage Max 7mV at 5V
Input Bias Current Max 0.25µA at 5V
Output Current Typically 84mA at 5V
Quiescent Current Max 120µA
Propagation Delay Max 600ns
No explicit CMRR or PSRR stated
Hysteresis not specified
Package SC-74A, SOT-753
Quality and Safety Features
Operating Temperature ranges from -40°C to 85°C
Surface Mount Technology for reliable soldering and assembly
Compatibility
Works with CMOS, TTL, and Open-Collector output requirements
Flexible supply voltage compatibility
Application Areas
Industrial controls
Consumer electronics
Embedded systems
Sensor interfaces
Power management
Product Lifecycle
Last Time Buy status indicates nearing end of lifecycle
Potential for replacements or upgrades from Texas Instruments' portfolio
Several Key Reasons to Choose This Product
Operational stability over a wide temperature range
Ideal for battery-powered or low-voltage applications due to low operating current
Compact SOT-23-5 package suitable for space-constrained applications
Adequate output current for driving heavier loads
Simple integration with multiple circuit types due to versatile output compatibility
