HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearLP2985AIM5-2.8

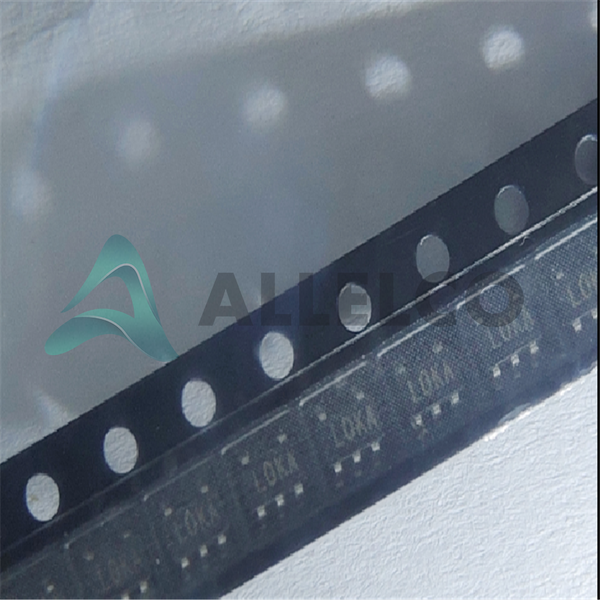

LP2985AIM5-2.8 Image
LP2985AIM5-2.8 Image - 1LP2985AIM5-2.8 Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

LP2985AIM5-2.8 - Texas Instruments

Manufacturer Part Number
LP2985AIM5-2.8
Manufacturer
Texas Instruments
Allelco Part Number
32D-LP2985AIM5-2.8
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG LINEAR 2.8V 150MA SOT23-5
Package
SOT-23-5
Data sheet
1.LP2985AIM5-2.8.pdf ...

PCN Assembly/Origin

2.73KHz.pdf
Compare
Our certification
In stock: 61280

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

LP2985AIM5-2.8 Tech Specifications
Texas Instruments - LP2985AIM5-2.8 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LP2985AIM5-2.8

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.58V @ 150mA
Voltage - Output (Min/Fixed) 2.8V
Voltage - Output (Max) -
Voltage - Input (Max) 16V
Supplier Device Package SOT-23-5
Series -
Protection Features Over Current, Over Temperature, Short Circuit
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
PSRR 45dB (1kHz)
Product Attribute Attribute Value
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 2.5 mA
Current - Quiescent (Iq) 95 µA
Current - Output 150mA
Control Features Enable
Base Product Number LP2985

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

LP2985AIM5-2.8

Manufacturer

Texas Instruments

Introduction

LP2985AIM5-2.8 is a fixed output low-dropout (LDO) linear regulator

Product Features and Performance

Low dropout voltage of 0.58V at 150mA load

Fixed output voltage of 2.8V

Output current capacity of 150mA

Quiescent current of 95 µA

Maximum supply current of 2.5 mA

Power supply rejection ratio (PSRR) of 45dB at 1kHz

Enable control feature for on/off control

Over-current protection

Over-temperature protection

Short-circuit protection

Product Advantages

High efficiency for battery-powered applications

Low quiescent current extends battery life

Fast transient response

Good thermal performance

Key Technical Parameters

Input voltage up to 16V

Dropout voltage 0.58V max at 150mA

Output current of 150mA

Quiescent current (Iq) of 95 µA

Quality and Safety Features

Built-in over-current protection

Over-temperature protection

Short-circuit protection

Compatibility

Surface-mount technology compatible

SOT-23-5 package for small footprint

Application Areas

Portable devices

Battery-powered applications

Wireless communication equipment

Product Lifecycle

Product status is Not For New Designs, suggesting a potential phase-out and consideration for future replacements or upgrades

Several Key Reasons to Choose This Product

Extended operational temperature range from -40°C to 125°C suitable for harsh environments

Low dropout ideal for low voltage operations

High PSRR for stable performance amidst noisy inputs

Reliable protection features ensure long-term operation

Compact package ideal for space-constrained applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments LP2985AIM5-2.8

Product Attribute LP2985AIM5-2.7 LP2985AIM5-2.9 LP2985AIM5-2.0/NOPB LP2985AIM5-2.0
Part Number LP2985AIM5-2.7 LP2985AIM5-2.9 LP2985AIM5-2.0/NOPB LP2985AIM5-2.0
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage Dropout (Max) - - - -
Series - - - -
Control Features - - - -
Voltage - Output (Min/Fixed) - - - -
Voltage - Input (Max) - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Voltage - Output (Max) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Current - Quiescent (Iq) - - - -
Protection Features - - - -
Current - Supply (Max) - - - -
Output Configuration - - - -
Current - Output - - - -
Number of Regulators - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
PSRR - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Mounting Type - Surface Mount Through Hole Surface Mount

LP2985AIM5-2.8 Datasheet PDF

Download LP2985AIM5-2.8 pdf datasheets and Texas Instruments documentation for LP2985AIM5-2.8 - Texas Instruments.

PCN Design/Specification
Copper Wire Update 12/Aug/2015.pdf LP2985-N 04/Apr/2017.pdf
PCN Assembly/Origin
2.73KHz.pdf
