Manufacturer Part Number

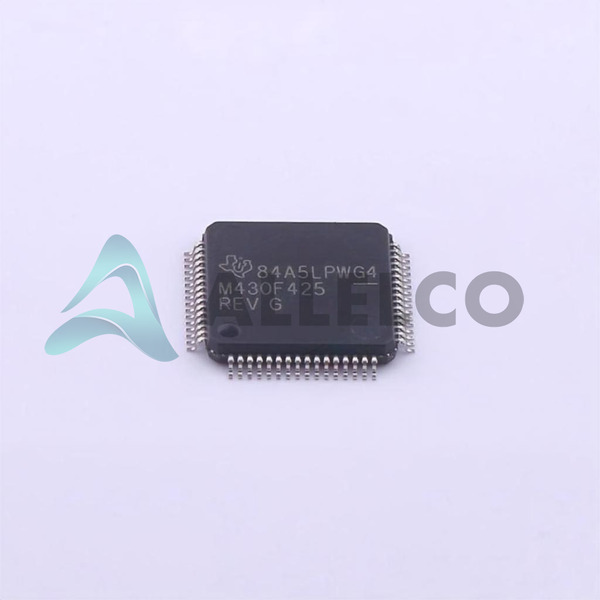

MSP430F425IPMR
Manufacturer
Texas Instruments
Introduction
The MSP430F425IPMR is a 16-bit embedded microcontroller designed for low-power and high-performance applications, part of the MSP430x4xx series.
Product Features and Performance
16-Bit MSP430 CPU16 core
Speed up to 8MHz
Integrates SPI, UART/USART for connectivity options
Peripherals include Brown-out Detect/Reset, LCD support, Power-on Reset (POR), PWM, Watchdog Timer (WDT)
Features 14 I/O pins
16KB Program Memory (FLASH) + 256B
512 x 8 bytes of RAM
Internal A/D converter with 3 channels of 16-bit resolution
Operates across a voltage range of 1.8V to 3.6V
Internal oscillator for clock generation
Rated for operation from -40°C to 85°C
Product Advantages
Low power consumption for extended battery life in portable devices
Integrated peripherals reduce external component need, saving space and cost
Flash memory allows for flexible programming and firmware updates
Broad connectivity options for versatile application use
High-resolution ADC for precise sensor reading and data acquisition
Key Technical Parameters
Core Processor: MSP430 CPU16
Core Size: 16-Bit
Speed: 8MHz
Program Memory: 16KB FLASH
RAM: 512 x 8
Voltage Supply: 1.8V ~ 3.6V
ADC: 3x16b
Temperature Range: -40°C ~ 85°C
Package: 64-LQFP (10x10)
Quality and Safety Features
Includes features like Brown-out Detect/Reset and Watchdog Timer for system reliability and safety
Robust design ensures performance stability across the specified temperature range
Compatibility
Compatible with SPI and UART/USART interface devices
Easily integrated into existing systems with minimal hardware changes
Application Areas
Ideal for low-power handheld devices
Suitable for sensor management, data acquisition systems, and IoT devices
Applicable in smart meters, wearable technology, and medical monitoring equipment
Product Lifecycle
Noted as "Not For New Designs" indicating it may be nearing the end of its product lifecycle
Potential for availability of replacements or upgrades; consult Texas Instruments for specifics
Several Key Reasons to Choose This Product
Low power consumption extends the operational life of battery-powered devices
Comprehensive feature set integrates many functions into a single chip, reducing system complexity
Flash memory allows for easy updates and customization
High-resolution ADC facilitates accurate sensor data processing
Robust support and documentation from Texas Instruments
Compatibility with a range of interface standards simplifies integration into diverse systems
