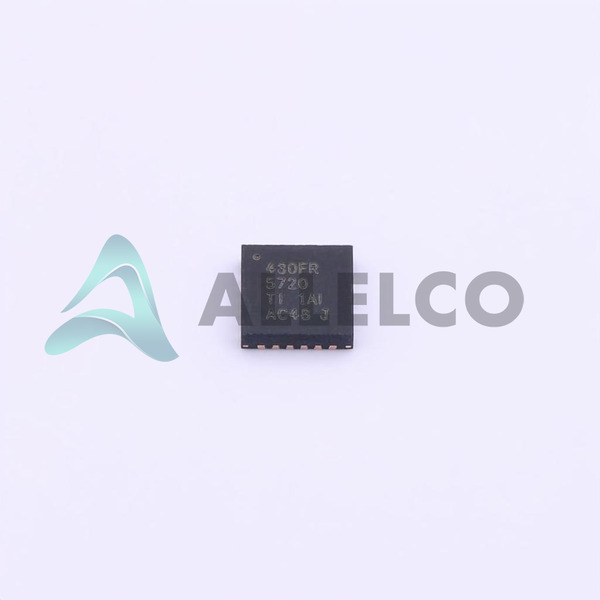

MSP430FR5720IRGER - Texas Instruments

Name: Texas Instruments MSP430FR5720IRGER
Brand: Texas Instruments
SKU: MSP430FR5720IRGER
Price: 0.875 USD
Availability: InStock
Rating: 5 (6 reviews)

Manufacturer Part Number: MSP430FR5720IRGER

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430FR5720IRGER

Warranty: 1 Year Allelco Warranty - Find out more

Stock Status:: 32,178 pcs available, New & Original

Parts Description: IC MCU 16BIT 4KB FRAM 24VQFN

Package: 24-VQFN (4x4)

Data sheet: MSP430FR5720IRG.pdf

Datasheets
MSP430FR57xx Family User Guide.pdf

Errata
MSP430FR5720 Errata.pdf

HTML Datasheet
MSP430FR573x,2x Datasheet.pdf

PCN Other
2.73KHz.pdf

PCN Assembly/Origin
2.73KHz.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 32178

Unit Price: $1.498
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$1.498	$1.50
10+	$1.289	$12.89
30+	$1.157	$34.71
100+	$0.963	$96.30
500+	$0.902	$451.00
1000+	$0.875	$875.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

MSP430FR5720IRGER Tech Specifications
Texas Instruments - MSP430FR5720IRGER technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430FR5720IRGER

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	2V ~ 3.6V
Supplier Device Package	24-VQFN (4x4)
Speed	8MHz
Series	MSP430™ FRAM
RAM Size	1K x 8
Program Memory Type	FRAM
Program Memory Size	4KB (4K x 8)
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Package / Case	24-VFQFN Exposed Pad
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	17
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	A/D 8x10b
Core Size	16-Bit
Core Processor	MSP430 CPUXV2
Connectivity	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Base Product Number	MSP430FR5720

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001

Parts Introduction

MSP430FR5720IRGER (1)

Manufacturer Part Number

MSP430FR5720IRGER

Manufacturer

Texas Instruments

Introduction

The MSP430FR5720IRGER is a low-power 16-bit microcontroller from the MSP430™ FRAM series, tailored for efficient handling and processing capabilities within embedded systems.

Product Features and Performance

Core Processor: MSP430 CPUXV2, 16-Bit

Speed: 8MHz

Connectivity: I2C, IrDA, LINbus, SCI, SPI, UART/USART

Peripherals: Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Size: 4KB (FRAM)

RAM Size: 1K x 8

Data Converters: A/D 8x10b

Oscillator Type: Internal

Product Advantages

Ultra-low power consumption

FRAM enables faster writing speeds and higher endurance than flash

Extensive communication support for versatile interfacing

Small form factor with 24-VQFN packaging

MSP430FR5720IRGER (2)

Key Technical Parameters

RAM: 1K x 8

Program Memory: 4KB (FRAM)

Voltage Supply: 2V ~ 3.6V

Operating Temperature: -40°C ~ 85°C

Number of I/O: 17

Quality and Safety Features

Built-in Brown-out Detect/Reset for system reliability

Power-on Reset (POR) function safeguards initialization process

Compatibility

Works seamlessly with other components in the MSP430 series

Supports multiple communication protocols for system integration

Application Areas

Industrial automation

Consumer electronics

Power management systems

Sensors and instrumentation

Product Lifecycle

Currently active with no announced discontinuation

Replacement or upgrade options available as technology progresses

Several Key Reasons to Choose This Product

High reliability and extended operational lifespan with FRAM technology

Ideal for power-sensitive applications due to low power requirements

Robust peripheral set and multi-protocol connectivity enhance versatility

Small package size suitable for compact designs

Suitable for a wide temperature range making it adaptable for harsh environments
