Manufacturer Part Number

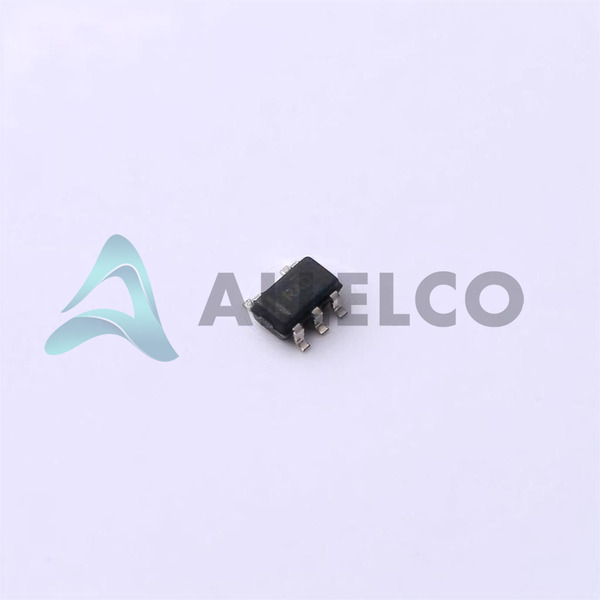

OPA322AIDBVT
Manufacturer
Texas Instruments
Introduction
The OPA322 is a high-performance, rail-to-rail input/output operational amplifier (op-amp) designed for a wide range of general-purpose applications.
Product Features and Performance
Rail-to-rail input and output
High gain bandwidth of 20 MHz
Low input offset voltage of 500 μV
Extremely low input bias current of 0.2 pA
High slew rate of 10 V/μs
Wide supply voltage range from 1.8 V to 5.5 V
Low supply current of 1.6 mA
Capable of driving loads up to 65 mA
Product Advantages
Excellent performance for general-purpose applications
Wide operating temperature range of -40°C to 125°C
Small and space-saving SOT-23-5 package
RoHS3 compliant
Key Technical Parameters
Gain Bandwidth Product: 20 MHz
Voltage Supply Span (Min/Max): 1.8 V / 5.5 V
Current Supply: 1.6 mA
Slew Rate: 10 V/μs
Voltage Input Offset: 500 μV
Amplifier Type: General Purpose
Current Output / Channel: 65 mA
Current Input Bias: 0.2 pA
Quality and Safety Features
RoHS3 compliant
Operates in a wide temperature range of -40°C to 125°C
Compatibility
The OPA322 is a general-purpose op-amp that can be used in a variety of applications, including data acquisition, instrumentation, and industrial control systems.
Application Areas
Data acquisition systems
Instrumentation amplifiers
Industrial control systems
Sensor signal conditioning
General-purpose amplification
Product Lifecycle
The OPA322 is an active and widely available product. Texas Instruments continues to manufacture and support this op-amp, and there are no indications of it being discontinued or replaced in the near future.
Several Key Reasons to Choose This Product
Excellent performance for general-purpose applications
Wide operating temperature range
Small and space-saving package
Low power consumption
Extremely low input bias current
RoHS3 compliance for environmental safety
