Manufacturer Part Number
PCA9306DQER
Manufacturer
texas-instruments
Introduction
The PCA9306DQER is a logic translator device designed for voltage level shifting applications, originating from Texas Instruments' portfolio of logic translators and level shifters.
Product Features and Performance
Bidirectional channel type for versatile signal direction control.
Supports single circuit with 2 channels for efficient data handling.
Voltage compatibility ranges from 1.2V ~ 3.3V for VCCA and 1.8V ~ 5.5V for VCCB, accommodating various power levels.
Features auto-direction sensing, enhancing operational reliability and simplicity.
Designed for surface mount installation, supporting modern compact PCB designs.

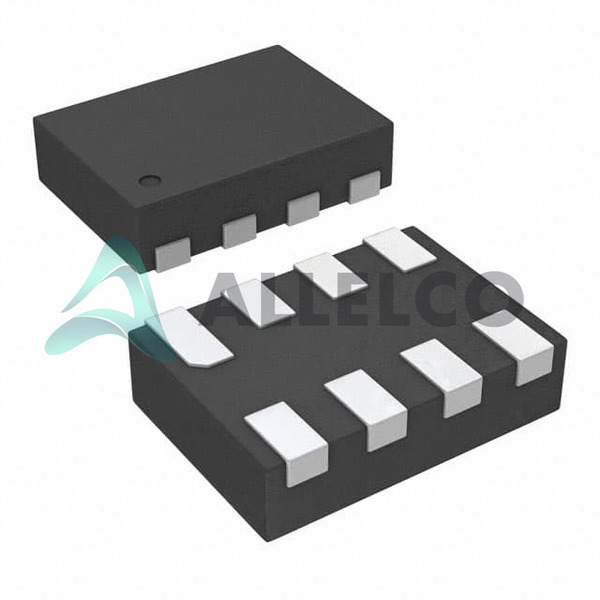

Encased in an 8-XFDFN package, optimized for minimal space usage.
Operational temperature range from -40°C ~ 85°C, suitable for a wide range of environmental conditions.
Product Advantages
Auto-direction sensing simplifies interface connections between different voltage domains.
Wide voltage range support ensures compatibility with a broad array of devices and systems.
Compact package design aids in reducing overall product size for end applications.
Key Technical Parameters
Channels Per Circuit: 2
Voltage VCCA: 1.2V ~ 3.3V
Voltage VCCB: 1.8V ~ 5.5V
Operating Temperature: -40°C ~ 85°C
Package / Case: 8-XFDFN
Mounting Type: Surface Mount
Quality and Safety Features
Built to meet stringent Texas Instruments quality standards.
Ensures safe voltage level shifting between different domains, protecting connected devices.
Compatibility
Compatible with a wide range of microcontrollers, digital interfaces, and other logic-level devices requiring voltage translation.
Application Areas
Ideal for multi-voltage systems, signal bridging in consumer electronics, IoT devices, mobile phones, and data communication applications.
Product Lifecycle
Status: Active
The product is not nearing discontinuation, ensuring a stable supply chain for future designs and replacements.
Several Key Reasons to Choose This Product
Texas Instruments' reputation for reliability and performance.
The broad compatibility with various voltages and devices facilitates versatile design applications.
Auto-direction sensing simplifies circuit complexities, reducing design time and potential for errors.
Compact form factor aids in creating more efficient and smaller designs without compromising functionality.
Operational across a wide temperature range, ensuring reliability in diverse environmental conditions.
