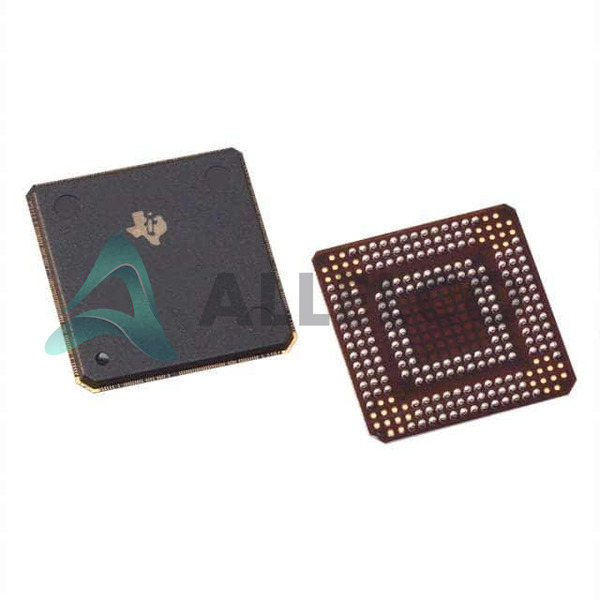

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

PCI1510ZVF - Texas Instruments

Name: Texas Instruments PCI1510ZVF
Brand: Texas Instruments
SKU: PCI1510ZVF
Availability: InStock
Rating: 5 (4 reviews)

Manufacturer Part Number: PCI1510ZVF

Manufacturer: Texas Instruments

Allelco Part Number: 32D-PCI1510ZVF

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC PC CARD CONTROLLER 209-BGA

Package: 209-NFBGA (16x16)

Data sheet: -

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 12990

EXPRESS OPTION

Payment method

Our certification

Specifications

PCI1510ZVF Tech Specifications
Texas Instruments - PCI1510ZVF technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - PCI1510ZVF

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply	3.3V, 5V
Supplier Device Package	209-NFBGA (16x16)
Standards	PC Card 7.2
Series	-
Protocol	PCI CardBus
Package / Case	209-LFBGA

Product Attribute	Attribute Value
Package	Tray
Operating Temperature	-
Interface	PCI
Function	Controller
Current - Supply	-
Base Product Number	PCI1510

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

PCI1510ZVF

Manufacturer

Texas Instruments

Introduction

The PCI1510ZVF is a PCI-to-CardBus bridge controller from Texas Instruments. It provides a seamless interface between the PCI bus and the CardBus interface, enabling the integration of CardBus functionality into PCI-based systems.

Product Features and Performance

Supports PCI 2.2 and PC Card 7.2 standards

3V and 5V supply voltage support

Provides full PCI bus master and target functionality

Supports 32-bit PCI bus interface

Offers CardBus 32-bit card interface

Supports 3.3V and 5V CardBus cards

Includes power management features

Product Advantages

Enables the integration of CardBus functionality into PCI-based systems

Provides a reliable and efficient interface between PCI and CardBus

Supports both 3.3V and 5V power supply environments

Simplifies system design and reduces development time

Key Reasons to Choose This Product

Seamless integration of PCI and CardBus technologies

Robust performance and power management features

Trusted Texas Instruments quality and reliability

Facilitates the development of advanced, modern PCI-based systems

Quality and Safety Features

Designed and manufactured to the highest quality standards

Meets relevant safety and regulatory requirements

Compatibility

Compatible with PCI 2.2 and PC Card 7.2 standards

Supports both 3.3V and 5V power supply environments

Application Areas

Ideal for use in PCI-based systems that require CardBus functionality, such as laptops, desktops, servers, and embedded systems

Product Lifecycle

["The PCI1510ZVF is an obsolete product, meaning it is no longer in active production.","There may be equivalent or alternative models available from Texas Instruments or other manufacturers. Please contact our website's sales team for more information on compatible solutions."]

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments PCI1510ZVF

Product Attribute
Part Number	PCI1510RZVF	PCI1510GVF	PCI1512ZVF	PCI1510RGVF
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Series	-	-	-	-
Voltage - Supply	-	-	-	-
Protocol	-	-	-	-
Function	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Standards	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Interface	-	-	-	-
Current - Supply	-	-	-	-
