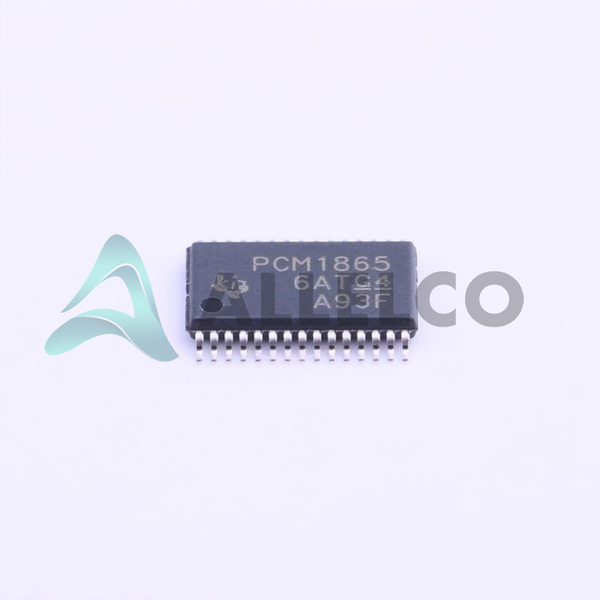

Manufacturer Part Number
PCM1865DBTR
Manufacturer
Texas Instruments
Introduction
The PCM1865DBTR by Texas Instruments is a sophisticated audio analog-to-digital converter (ADC) designed for advanced data acquisition in sound processing technologies.
Product Features and Performance
Advanced audio ADC with 24-bit resolution
Four-channel input for versatile audio acquisition
High sampling rate up to 192kHz
Supports both I2C and SPI data interfaces for flexible communication
Single supply operation from 3V to 3.6V
Capable of operating in extreme temperatures from -40°C to 125°C
Product Advantages
High-resolution audio conversion enhances sound quality
Multiple channels support complex audio setups
High sampling rate enables capture of high-fidelity sound
Dual data interface options ensure compatibility with various microcontrollers and DSPs
Operational in a wide range of temperatures for use in diverse environments
Key Technical Parameters
Resolution: 24 bits
Number of Channels: 4
Sampling Rate: 192k per second
Data Interface: I2C, SPI
Voltage Supply: 3V ~ 3.6V
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Ensures high fidelity and precision in audio data conversion
Built to Texas Instruments’ rigorous manufacturing standards
Compatibility
Versatile data interface compatibility (I2C/SPI) suits a wide range of applications
Single supply voltage for easy integration into existing designs
Application Areas
High-end audio equipment
Professional sound recording and production
Multi-channel audio systems in entertainment and commercial venues
Sound analysis and noise measurement equipment
Product Lifecycle
Currently marked as Active
Continuous support with no immediate discontinuation planned
Availability of replacements or upgrades as technology advances
Several Key Reasons to Choose This Product
Exceptional audio quality due to 24-bit resolution and high sampling rate
Flexibility in application due to 4-channel input and dual data interface
Reliable operation in extreme environmental conditions
Backed by Texas Instruments' heritage in quality and innovation
Suitable for advanced audio data acquisition and processing requirements
Easy integration into existing systems with single supply voltage and standard package
