Home Products Integrated Circuits (ICs)Interface - CODECs~~PCM3052ARTF~~

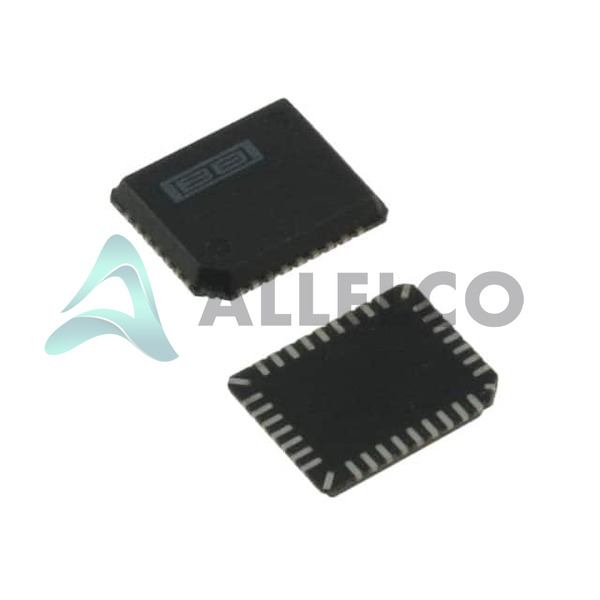

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

PCM3052ARTF - Texas Instruments

Name: Texas Instruments PCM3052ARTF
Brand: Texas Instruments
SKU: PCM3052ARTF
Availability: InStock
Rating: 5 (3 reviews)

Manufacturer Part Number: PCM3052ARTF

Manufacturer: Texas Instruments

Allelco Part Number: 32D-PCM3052ARTF

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC STER AUD CODEC 24BIT 32-VQFN

Package: 32-VQFN (6.2x5.2)

Data sheet: 1.PCM3052ARTF.pdf ...

HTML Datasheet
PCM3052A.pdf

PCN Design/Specification
Lead Frame Base Update 02/Apr/2015.pdf Marking Change 07/Oct/2021.pdf

PCN Packaging
2.73KHz.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 5838

EXPRESS OPTION

Payment method

Our certification

Specifications

PCM3052ARTF Tech Specifications
Texas Instruments - PCM3052ARTF technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - PCM3052ARTF

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply, Digital	3V ~ 3.6V
Voltage - Supply, Analog	4.5V ~ 5.5V
Type	Stereo Audio
Supplier Device Package	32-VQFN (6.2x5.2)
Sigma Delta	Yes
Series	-
S/N Ratio, ADCs / DACs (db) Typ	101 / 105
Resolution (Bits)	24 b

Product Attribute	Attribute Value
Package / Case	32-VFQFN
Package	Tray
Operating Temperature	-40°C ~ 85°C
Number of ADCs / DACs	2 / 2
Mounting Type	Surface Mount
Dynamic Range, ADCs / DACs (db) Typ	101 / 104
Data Interface	Serial
Base Product Number	PCM3052

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

PCM3052ARTF

Manufacturer

Texas Instruments

Introduction

The PCM3052ARTF is a high-performance stereo audio codec from Texas Instruments. It features a 24-bit, 2-channel analog-to-digital converter (ADC) and a 24-bit, 2-channel digital-to-analog converter (DAC) with exceptional audio performance.

Product Features and Performance

24-bit, 2-channel ADC and DAC

Sigma-Delta architecture

S/N Ratio: 101 dB (ADC), 105 dB (DAC)

Dynamic Range: 101 dB (ADC), 104 dB (DAC)

Analog supply voltage: 4.5V to 5.5V

Digital supply voltage: 3V to 3.6V

Operating temperature range: -40°C to 85°C

Small 32-VFQFN package

Product Advantages

Excellent audio performance with high S/N ratio and dynamic range

Low power consumption

Wide operating temperature range

Compact 32-VFQFN package

Key Reasons to Choose This Product

Industry-leading audio performance

Reliable and efficient operation

Versatile for a wide range of applications

Small form factor for space-constrained designs

Quality and Safety Features

Robust design for reliable operation

Meets safety and compliance standards

Compatibility

Compatible with various microcontrollers and digital signal processors through serial data interface

Application Areas

Portable audio devices

Professional audio equipment

Industrial control systems

Automotive infotainment systems

Product Lifecycle

The PCM3052ARTF is an active product. There are no known equivalent or alternative models available from Texas Instruments. For more information or support, please contact our website's sales team.

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments PCM3052ARTF

Product Attribute
Part Number	PCM3052ARTFG4	PCM3052ARTFR	PCM3052ARTFRG4	PCM3008TG4
Manufacturer	Luminary Micro / Texas Instruments	Texas Instruments	Luminary Micro / Texas Instruments	Texas Instruments
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Number of ADCs / DACs	-	-	-	-
Resolution (Bits)	-	-	-	-
Data Interface	-	LVDS - Parallel	I²C	LVDS - Parallel, Parallel
S/N Ratio, ADCs / DACs (db) Typ	-	-	-	-
Dynamic Range, ADCs / DACs (db) Typ	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Sigma Delta	-	-	-	-
Type	-	-	-	-
Series	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Voltage - Supply, Digital	-	1.14V ~ 1.26V	11.4V ~ 16.5V	1.65V ~ 3.6V
Voltage - Supply, Analog	-	3.14V ~ 3.46V	11.4V ~ 16.5V	3V ~ 3.6V

PCM3052ARTF Datasheet PDF

Download PCM3052ARTF pdf datasheets and Texas Instruments documentation for PCM3052ARTF - Texas Instruments.

HTML Datasheet: PCM3052A.pdf
PCN Design/Specification: Lead Frame Base Update 02/Apr/2015.pdf Marking Change 07/Oct/2021.pdf
PCN Packaging: 2.73KHz.pdf
