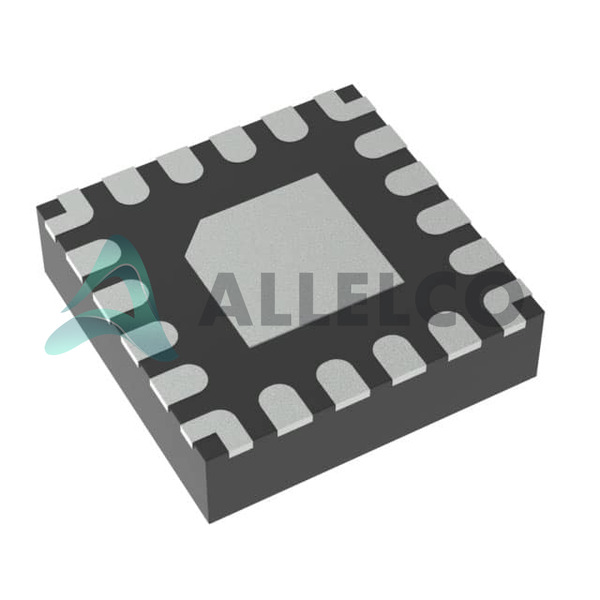

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

PCMD3140IRTER - Texas Instruments

Manufacturer Part Number: PCMD3140IRTER

Manufacturer: Texas Instruments

Allelco Part Number: 98D-PCMD3140IRTER

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: FOUR-CHANNEL PDM-INPUT TO TDM- O

Package: 20-WQFN (3x3)

Data sheet: 1.PCMD3140IRTER.pdf ...

Datasheets
PCMD3140.pdf

PCN Assembly/Origin
Wafer Fab Site 30/Mar/2023.pdf

~~Compare~~

Our certification

In stock: 3000

Unit Price: $2.416
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$2.416	$2.42
200+	$0.935	$187.00
500+	$0.902	$451.00
1000+	$0.887	$887.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

PCMD3140IRTER Tech Specifications
Texas Instruments - PCMD3140IRTER technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - PCMD3140IRTER

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage Supply Source	Analog and Digital
Voltage - Supply	1.7V ~ 1.9V, 3V ~ 3.6V, 1.65V ~ 1.95V, 3V ~ 3.6V
Type	Audio
Supplier Device Package	20-WQFN (3x3)
Series	-
Sampling Rate (Per Second)	7.35k ~ 768k

Product Attribute	Attribute Value
Resolution (Bits)	16 b, 20 b, 24 b, 32 b
Package / Case	20-WFQFN Exposed Pad
Package	Tape & Reel (TR)
Operating Temperature	-40°C ~ 125°C (TA)
Number of Channels	4
Mounting Type	Surface Mount
Data Interface	I²C, I²S, TDM

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Not applicable
Moisture Sensitivity Level (MSL)	2 (1 Year)
ECCN	EAR99
HTSUS	8542.39.0001

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments PCMD3140IRTER

Product Attribute
Part Number	PCMD3140IRTER	PCMD3180IRTWR	PCMD3180IRTWT	PCMD3140QRTERQ1
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Bulk
Number of Channels	4	8	8	4
Resolution (Bits)	16 b, 20 b, 24 b, 32 b	-	-	-
Series	-	-	-	Automotive, AEC-Q100
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Operating Temperature	-40°C ~ 125°C (TA)	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Package / Case	20-WFQFN Exposed Pad	24-WFQFN Exposed Pad	24-WFQFN Exposed Pad	20-WFQFN Exposed Pad
Voltage Supply Source	Analog and Digital	Analog and Digital	Analog and Digital	Analog and Digital
Type	Audio	PDM To TDM	PDM To TDM	ADC, Audio
Data Interface	I²C, I²S, TDM	I²C, SPI	I²C, SPI	-
Supplier Device Package	20-WQFN (3x3)	24-WQFN (4x4)	24-WQFN (4x4)	20-WQFN (3x3)
Sampling Rate (Per Second)	7.35k ~ 768k	768kHz	768k	8k ~ 768k
Voltage - Supply	1.7V ~ 1.9V, 3V ~ 3.6V, 1.65V ~ 1.95V, 3V ~ 3.6V	1.7V ~ 1.9V, 3V ~ 3.6V, 1.65V ~ 1.95V, 3V ~ 3.6V	1.7V ~ 1.9V, 3V ~ 3.6V, 1.65V ~ 1.95V, 3V ~ 3.6V	1.7V ~ 1.9V, 3V ~ 3.6V, 1.65V ~ 1.95V, 3V ~ 3.6V

PCMD3140IRTER Datasheet PDF

Download PCMD3140IRTER pdf datasheets and Texas Instruments documentation for PCMD3140IRTER - Texas Instruments.

Datasheets: PCMD3140.pdf
PCN Assembly/Origin: Wafer Fab Site 30/Mar/2023.pdf
