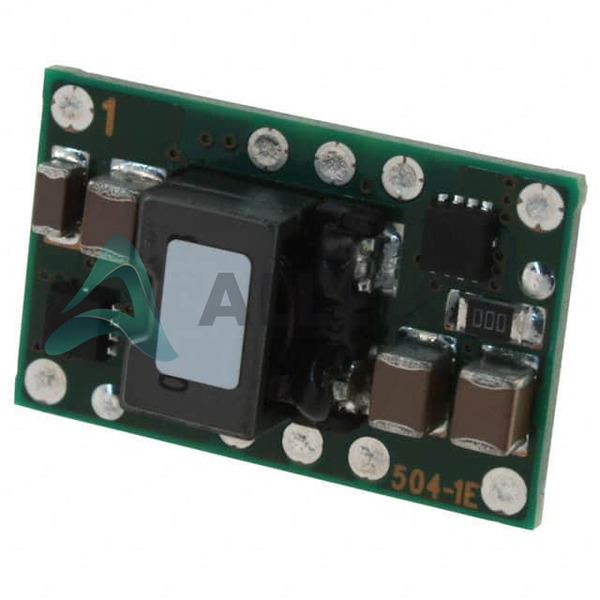

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

PTH12060LAST - Texas Instruments

Name: Texas Instruments PTH12060LAST
Brand: Texas Instruments
SKU: PTH12060LAST
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer Part Number: PTH12060LAST

Manufacturer: Texas Instruments

Allelco Part Number: 32D-PTH12060LAST

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: DC DC CONVERTER 0.8-1.8V 10A

Package: 10-SMD Module

Data sheet: 1.PTH12060LAST.pdf ...

HTML Datasheet
PTH12060W,L Series.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 2717

EXPRESS OPTION

Payment method

Our certification

Specifications

PTH12060LAST Tech Specifications
Texas Instruments - PTH12060LAST technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - PTH12060LAST

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output 3	-
Voltage - Output 2	-
Voltage - Output 1	0.8 ~ 1.8V
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Type	Non-Isolated PoL Module
Size / Dimension	1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm)
Series	PTH12060
Package / Case	10-SMD Module

Product Attribute	Attribute Value
Package	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Number of Outputs	1
Mounting Type	Surface Mount
Features	Remote On/Off, OCP, UVLO
Efficiency	88%
Current - Output (Max)	10A
Base Product Number	PTH12060
Applications	ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580

Parts Introduction

Manufacturer Part Number

PTH12060LAST

Manufacturer

Texas Instruments

Introduction

The PTH12060LAST is a non-isolated, point-of-load (PoL) DC-DC converter module from Texas Instruments, designed for various commercial IT equipment applications.

Product Features and Performance

High current output up to 10A

Wide input voltage range from 10.8V to 13.2V

Adjustable output voltage from 0.8V to 1.8V

High efficiency up to 88%

Remote on/off control

Overcurrent protection (OCP)

Undervoltage lockout (UVLO)

Compact 10-SMD module design

Product Advantages

Compact and space-saving design

High efficiency for power-sensitive applications

Robust protection features for reliable operation

Wide operating temperature range of -40°C to 85°C

Key Technical Parameters

Input voltage range: 10.8V to 13.2V

Output voltage range: 0.8V to 1.8V

Maximum output current: 10A

Efficiency: Up to 88%

Operating temperature: -40°C to 85°C

Quality and Safety Features

RoHS3 compliant

Surface mount (SMD) package for reliable connections

Protection features: OCP, UVLO

Compatibility

The PTH12060LAST is compatible with various commercial IT equipment and applications that require a high-performance, non-isolated PoL DC-DC converter.

Application Areas

Servers and networking equipment

Telecommunications equipment

Industrial automation and control systems

Consumer electronics

Product Lifecycle

The PTH12060LAST is an active product, and Texas Instruments continues to provide support and availability. Replacement or upgrade options may be available as part of Texas Instruments' product roadmap.

Key Reasons to Choose This Product

High current output capability up to 10A

Wide input voltage range and adjustable output voltage for flexibility

High efficiency for power-saving and thermal management

Compact and space-saving design

Robust protection features for reliable operation in diverse environments

Wide operating temperature range for use in various applications

Compatibility with a wide range of commercial IT equipment

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments PTH12060LAST

Product Attribute
Part Number	PTH12060LAST	PTH12060LAZT	PTH12060LAS	PTH12060LAZT
Manufacturer	Artesyn Embedded Power	Texas Instruments	Artesyn Embedded Power	Artesyn Embedded Power
Voltage - Input (Min)	-	-	-	-
Size / Dimension	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Current - Output (Max)	-	-	-	-
Series	-	-	-	-
Voltage - Input (Max)	-	-	-	-
Voltage - Output 2	-	-	-	-
Voltage - Output 3	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Efficiency	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Voltage - Output 1	-	-	-	-
Number of Outputs	-	-	-	-
Applications	-	-	-	-
Type	-	-	-	-

PTH12060LAST Datasheet PDF

Download PTH12060LAST pdf datasheets and Texas Instruments documentation for PTH12060LAST - Texas Instruments.

HTML Datasheet: PTH12060W,L Series.pdf
