HomeProductsIntegrated Circuits (ICs)PMIC - Voltage ReferenceREF2030AIDDCR

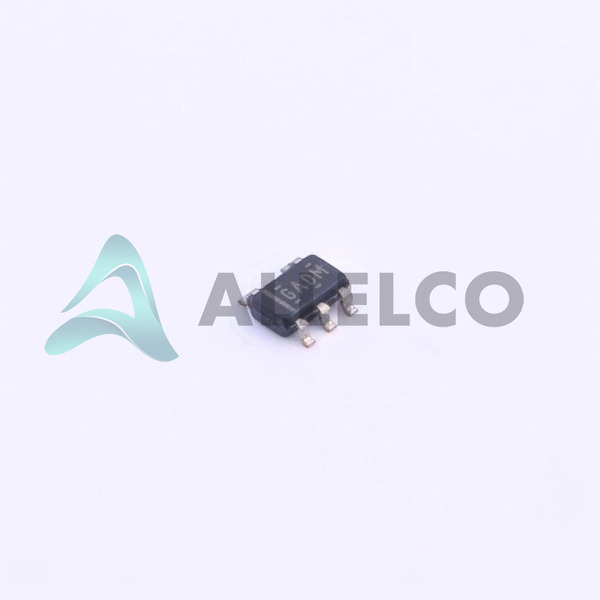

REF2030AIDDCR Image
REF2030AIDDCR Image - 1REF2030AIDDCR Image - 2REF2030AIDDCR Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

REF2030AIDDCR - Texas Instruments

Manufacturer Part Number
REF2030AIDDCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-REF2030AIDDCR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC VREF SERIES 0.05% SOT23-5
Package
SOT-23-THIN
Data sheet
1.REF2030AIDDCR.pdf ...

HTML Datasheet

REF2025,30,33,41.pdf

PCN Design/Specification

REF20x 16/Mar/2022.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 18348
  • Unit Price: $1.513
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.513 $1.51
10+ $1.308 $13.08
30+ $1.18 $35.40
100+ $0.966 $96.60
500+ $0.907 $453.50
1000+ $0.881 $881.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

REF2030AIDDCR Tech Specifications
Texas Instruments - REF2030AIDDCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - REF2030AIDDCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 1.5V, 3V
Voltage - Input 3.02V ~ 5.5V
Tolerance ±0.05%
Temperature Coefficient 8ppm/°C
Supplier Device Package SOT-23-THIN
Series -
Reference Type Series
Package / Case SOT-23-5 Thin, TSOT-23-5
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Fixed
Operating Temperature -40°C ~ 125°C (TA)
Noise - 10Hz to 10kHz -
Noise - 0.1Hz to 10Hz 12ppmp-p
Mounting Type Surface Mount
Current - Supply 460µA
Current - Output 20 mA
Base Product Number REF2030

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

REF2030AIDDCR

Manufacturer

Texas Instruments

Introduction

REF2030AIDDCR is a high-accuracy voltage reference component from Texas Instruments, designed for power management applications.

Product Features and Performance

Fixed voltage outputs: 1.5V, 3V

Output current: 20 mA

High accuracy with tolerance of ±0.05%

Low temperature coefficient: 8ppm/°C

Low noise: 12ppmp-p for 0.1Hz to 10Hz

Input voltage range: 3.02V ~ 5.5V

Supply current: 460µA

Operating temperature range: -40°C ~ 125°C

Product Advantages

High precision voltage reference for stable output

Suitable for battery-powered and portable devices due to low power consumption

Broad operating temperature range enhances reliability in various environments

Key Technical Parameters

Voltage Output (Min/Fixed): 1.5V, 3V

Current Output: 20 mA

Tolerance: ±0.05%

Temperature Coefficient: 8ppm/°C

Voltage Input: 3.02V ~ 5.5V

Current Supply: 460µA

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Built with high-quality standards of Texas Instruments

Reliable performance in extended temperature ranges

Compatibility

Surface Mount technology allows easy integration into circuit designs

Compatible with various applications requiring stable voltage reference

Application Areas

Power Management

Battery-powered devices

Portable electronics

Precision instrumentation

Product Lifecycle

Status: Active

This model shows no signs of nearing discontinuation, ensuring long-term availability.

Several Key Reasons to Choose This Product

Exceptional accuracy and stability for critical applications

Low power consumption ideal for mobile and battery-operated devices

Wide operating temperature range for versatile use

Reliability and quality assurance of Texas Instruments

Support for a broad array of applications in electronics requiring precision voltage references

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments REF2030AIDDCR

Product Attribute REF2030AIDDCT REF2033AIDDCR REF2025AISDDCR REF2030QDDCRQ1
Part Number REF2030AIDDCT REF2033AIDDCR REF2025AISDDCR REF2030QDDCRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Noise - 10Hz to 10kHz - - - -
Reference Type - External, Internal External External, Internal
Base Product Number - DAC34H84 MAX500 ADS62P42
Series - - - -
Voltage - Output (Min/Fixed) - - - -
Current - Supply - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Output Type - Current - Unbuffered Voltage - Buffered -
Temperature Coefficient - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Mounting Type - Surface Mount Through Hole Surface Mount
Tolerance - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Current - Output - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage - Input - - - -
Noise - 0.1Hz to 10Hz - - - -

REF2030AIDDCR Datasheet PDF

Download REF2030AIDDCR pdf datasheets and Texas Instruments documentation for REF2030AIDDCR - Texas Instruments.

HTML Datasheet
REF2025,30,33,41.pdf
PCN Design/Specification
REF20x 16/Mar/2022.pdf
