HomeProductsIntegrated Circuits (ICs)PMIC - Voltage ReferenceREF2930AIDBZR

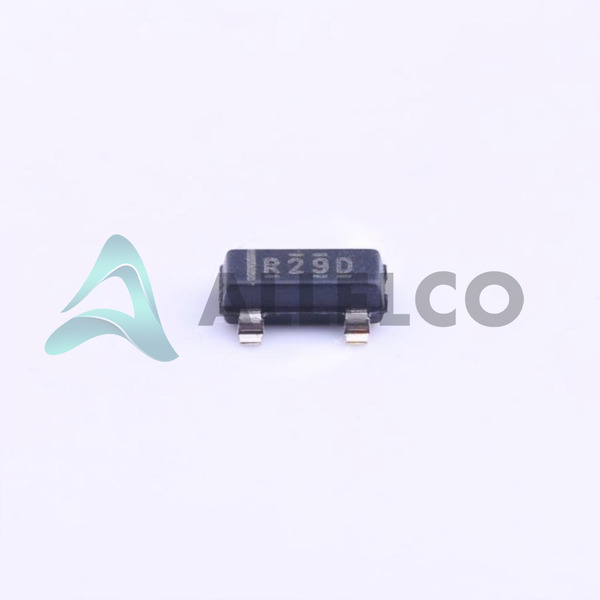

REF2930AIDBZR Image
REF2930AIDBZR Image - 1REF2930AIDBZR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

REF2930AIDBZR - Texas Instruments

Manufacturer Part Number
REF2930AIDBZR
Manufacturer
Texas Instruments
Allelco Part Number
32D-REF2930AIDBZR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC VREF SERIES 2% SOT23-3
Package
SOT-23-3
Data sheet
1.REF2930AIDBZR.pdf ...

PCN Design/Specification

Wire Chg 19/Mar/2016.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 114520
  • Unit Price: $0.468
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.468 $0.47
10+ $0.388 $3.88
30+ $0.348 $10.44
100+ $0.308 $30.80
500+ $0.259 $129.50
1000+ $0.248 $248.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

REF2930AIDBZR Tech Specifications
Texas Instruments - REF2930AIDBZR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - REF2930AIDBZR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 3V
Voltage - Input 3.05V ~ 5.5V
Tolerance ±2%
Temperature Coefficient 100ppm/°C
Supplier Device Package SOT-23-3
Series -
Reference Type Series
Package / Case TO-236-3, SC-59, SOT-23-3
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Fixed
Operating Temperature -40°C ~ 125°C (TA)
Noise - 10Hz to 10kHz 94µVrms
Noise - 0.1Hz to 10Hz 33µVp-p
Mounting Type Surface Mount
Current - Supply 59µA
Current - Output 25 mA
Base Product Number REF2930

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

REF2930AIDBZR

Manufacturer

Texas Instruments

Introduction

The REF2930AIDBZR is a precision voltage reference device from Texas Instruments, designed for Power Management (PMIC) applications that require a stable and precise reference voltage.

Product Features and Performance

Precision Voltage Reference

Series Reference Type

Fixed Output Type

3V Voltage Output

25 mA Current Output

±2% Tolerance

100 ppm/°C Temperature Coefficient

Low Noise: 33µVp-p (0.1Hz to 10Hz), 94µVrms (10Hz to 10kHz)

Wide Input Voltage Range of 3.05V to 5.5V

Low Supply Current at 59µA

Operating Temperature Range from -40°C to 125°C

Product Advantages

Excellent temperature stability

Extremely low power consumption

Minimal output noise

High output current capability

Tight tolerance for precise applications

Robust operating temperature suitable for versatile environments

Key Technical Parameters

3V Fixed Output Voltage

25 mA Output Current Capability

±2% Output Voltage Tolerance

100ppm/°C Temperature Coefficient

33µVp-p Output Noise (0.1Hz to 10Hz)

94µVrms Output Noise (10Hz to 10kHz)

05V to 5.5V Input Voltage Range

59µA Supply Current

Quality and Safety Features

Stable over temperature and load variations

Compliant with industry safety and quality standards

Compatibility

Compatible with various circuits requiring a 3V reference

Suitable for surface mount technology with TO-236-3, SC-59, SOT-23-3 package

Application Areas

Industrial control systems

Precision measurement devices

Data acquisition systems

Microprocessor or microcontroller-based systems

Portable medical devices

Battery-powered applications

Product Lifecycle

Active product status

No indication of discontinuation, with ongoing manufacturer's support

Several Key Reasons to Choose This Product

Ideal for high-precision and low-power applications

Stable reference voltage for critical designs

Space-saving SOT-23-3 package

Long-term reliability and performance

Backed by Texas Instruments' reputation and support

Offers a predictable and stable voltage reference for accurate data conversion and processing

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments REF2930AIDBZR

Product Attribute REF2930AIDBZRG4 REF2933AIDBZRG4 REF2920AIDBZRG4 REF2930AIDBZT
Part Number REF2930AIDBZRG4 REF2933AIDBZRG4 REF2920AIDBZRG4 REF2930AIDBZT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Voltage - Output (Min/Fixed) - - - -
Voltage - Input - - - -
Noise - 0.1Hz to 10Hz - - - -
Tolerance - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Reference Type - External, Internal External External, Internal
Current - Output - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Base Product Number - DAC34H84 MAX500 ADS62P42
Noise - 10Hz to 10kHz - - - -
Current - Supply - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Series - - - -
Temperature Coefficient - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
