Manufacturer Part Number

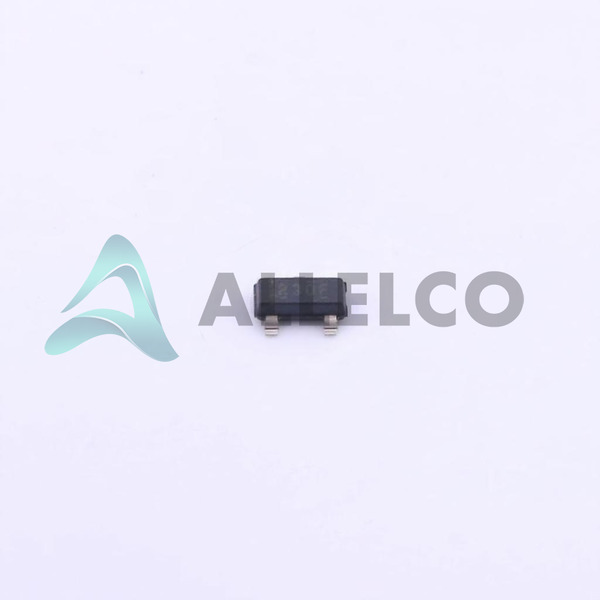

REF3030AIDBZT
Manufacturer
Texas Instruments
Introduction
The REF3030AIDBZT from Texas Instruments is a high-precision voltage reference IC suitable for various power management applications.
Product Features and Performance
Fixed 3V output voltage
Provides up to 25 mA output current
±0.2% tolerance for high precision applications
Low temperature coefficient of 75ppm/°C ensures stability over a wide temperature range
Low noise characteristics: 33µVp-p (0.1Hz to 10Hz) and 94µVrms (10Hz to 10kHz) for sensitive applications
Operates over a supply voltage range of 3.05V to 5.5V
Low supply current requirement of 50µA for efficient operation
Suitable for operating temperatures ranging from -40°C to +125°C
Product Advantages
High precision and stability make it ideal for critical applications
Low noise output enhances performance in sensitive RF or analog circuits
Wide supply voltage range provides flexibility in various applications
Low power consumption is ideal for battery-powered devices
High output current capability allows direct control of low power devices
Key Technical Parameters
Voltage Output (Min/Fixed): 3V
Current Output: 25 mA
Tolerance: ±0.2%
Temperature Coefficient: 75ppm/°C
Noise 0.1Hz to 10Hz: 33µVp-p; 10Hz to 10kHz: 94µVrms
Voltage Input: 3.05V ~ 5.5V
Current Supply: 50µA
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Manufactured by Texas Instruments, a leading semiconductor company known for high quality and reliability
Compliant with industry-standard safety and quality norms
Compatibility
Surface mount technology (SMT) compatible with TO-236-3, SC-59, SOT-23-3 package for easy integration
Application Areas
Power supplies
Battery chargers
Portable and battery-powered electronics
Data acquisition systems
Precision instrumentation
Product Lifecycle
Active product status indicates ongoing manufacturing and availability
Not near discontinuation, ensuring long-term availability for new designs
Several Key Reasons to Choose This Product
Precision and stability are crucial for achieving high-performance in sensitive applications
Low noise output benefits high-fidelity and RF applications
Texas Instruments' reputation for quality and reliability
Wide operating temperature range allows use in harsh environments
Low power consumption extends battery life in portable devices
