Manufacturer Part Number

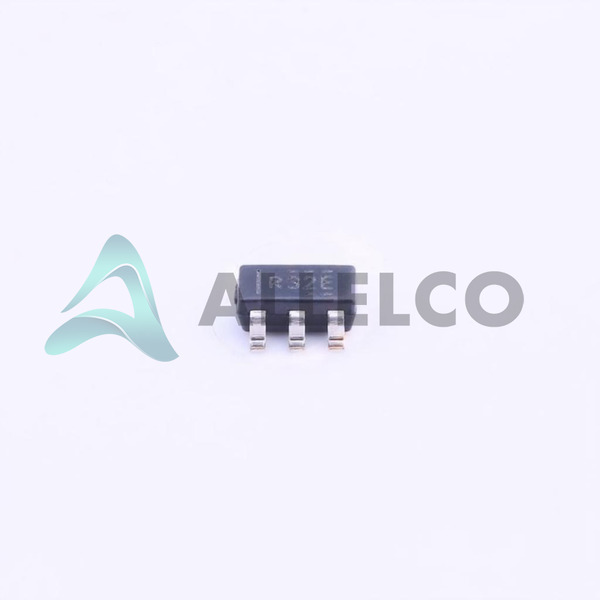

REF3233AIDBVT
Manufacturer
Texas Instruments
Introduction
The REF3233AIDBVT is a high-precision voltage reference component designed for power management and control in electronic circuits, providing a stable 3.3V output.
Product Features and Performance
Fixed 3.3V output voltage
Low output noise: 43µVp-p (0.1Hz to 10Hz), 63µVrms (10Hz to 10kHz)
Excellent temperature stability: 20ppm/°C
Very low supply current: 135µA
Wide input voltage range: 3.35V to 5.5V
High output current capability: 10 mA
Operating temperature range: -40°C to 125°C
Product Advantages
Highly precise and stable voltage reference enhances system accuracy
Low noise output ideal for sensitive applications
Efficient power usage prolongs battery life in portable devices
Wide input voltage accommodates various power supplies
Broad operating temperature range supports use in extreme conditions
Key Technical Parameters
Voltage Output (Min/Fixed): 3.3V
Output Current: 10 mA
Tolerance: ±0.2%
Temperature Coefficient: 20ppm/°C
Supply Current: 135µA
Input Voltage: 3.35V ~ 5.5V
Quality and Safety Features
Stringent quality control ensures reliability and performance
Meets or exceeds industry standards for safety and efficiency
Compatibility
Compatible with various microcontrollers and electronic components requiring a stable voltage reference
Surface mount SOT-23-6 package compatible with standard PCB technology
Application Areas
Precision measurement instruments
Portable and battery-powered devices
Data acquisition systems
Medical equipment
Industrial control systems
Product Lifecycle
Status: Not For New Designs (suggesting it is close to end-of-life or that better alternatives may exist)
Availability of replacements or upgrades should be checked with Texas Instruments or distributors
Several Key Reasons to Choose This Product
High precision and stability enhance overall system accuracy
Low power consumption is ideal for power-sensitive applications
Versatile input voltage range facilitates compatibility with various power sources
Robust package and wide temperature operation range make it suitable for challenging environments
Proven quality and safety from a leading semiconductor manufacturer, Texas Instruments
