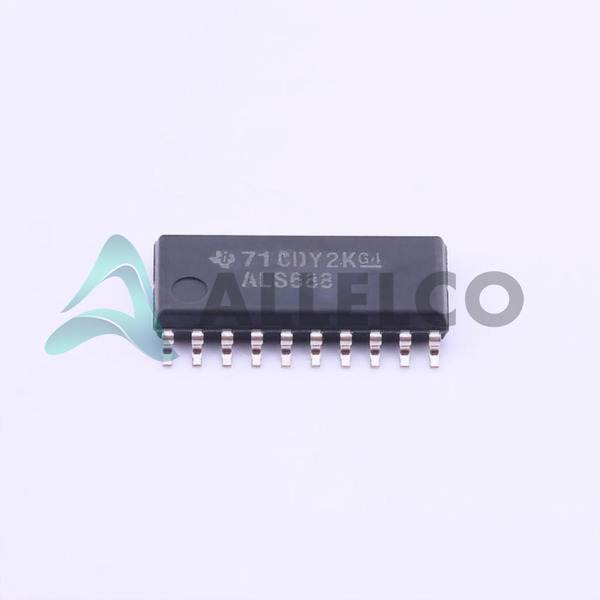

Manufacturer Part Number
SN74ALS688NSR
Manufacturer
Texas Instruments
Introduction
The SN74ALS688NSR is an 8-bit identity comparator that compares two 8-bit data words and indicates when they are equal. It features active-low outputs and can operate over a wide range of supply voltages from 4.5V to 5.5V.
Product Features and Performance
8-bit identity comparator
Active-low outputs
Wide supply voltage range of 4.5V to 5.5V
Maximum propagation delay of 20ns at 5V and 50pF load capacitance
Operates across a temperature range of 0°C to 70°C
Available in a 20-pin SOIC package
Product Advantages
Compact and space-efficient 20-pin SOIC package
Wide supply voltage range for versatile applications
Fast propagation delay for high-speed operations
Operates across a wide temperature range
Key Reasons to Choose This Product
Reliable and proven Texas Instruments technology
Offers a cost-effective solution for 8-bit identity comparison
Suitable for a variety of applications that require fast and efficient data comparison
Backed by Texas Instruments' reputation for quality and performance
Quality and Safety Features
Designed and manufactured to Texas Instruments' high-quality standards
Complies with industry safety and regulatory requirements
Compatibility
The SN74ALS688NSR is compatible with other 74ALS series logic devices and can be used in a wide range of digital circuit designs.
Application Areas
Data comparison and validation
Processor and memory interface circuits
Digital control and automation systems
Test and measurement equipment
Product Lifecycle
The SN74ALS688NSR is an active and currently available product from Texas Instruments. There are no known equivalent or alternative models at this time. If you have any further questions or need additional information, please contact our sales team through our website.
