Manufacturer Part Number
SN74LV04ADR
Manufacturer
Texas Instruments
Introduction

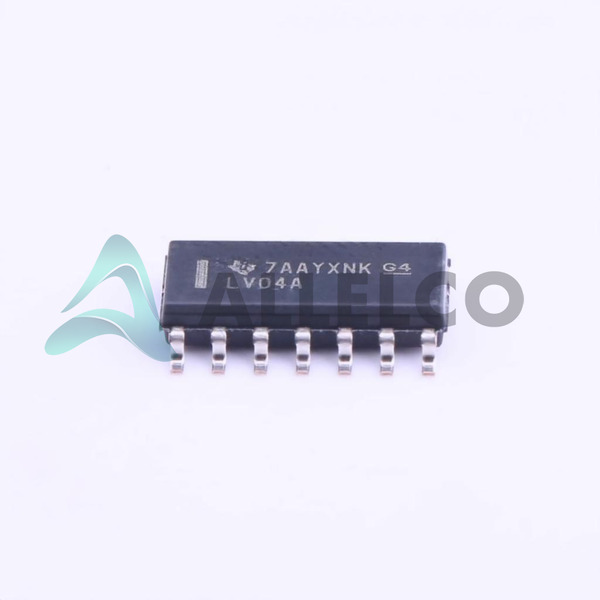

The SN74LV04ADR is a hex inverter chip from Texas Instruments designed for use in a wide range of electronic circuits. It is part of the 74LV series offering low-voltage operation.
Product Features and Performance
Six independent inverters
Low-power CMOS technology
Output drive capability: 12mA
Operating voltage range from 2V to 5.5V
Maximum quiescent current of 20 µA
Low input threshold levels
High-speed propagation delay: 7.5ns max at 5V, 50pF load
Compatible with TTL inputs
Multiple package options
Product Advantages
High noise immunity
Suitable for battery-operated applications due to low power consumption
High output drive while maintaining low static power consumption
Wide operating temperature range
Key Technical Parameters
Number of Circuits: 6
Number of Inputs: 1 per inverter
Voltage Supply Range: 2V ~ 5.5V
Quiescent Current (Max): 20 µA
Current - Output High, Low: 12mA, 12mA
Input Logic Level - Low: 0.5V
Input Logic Level - High: 1.5V
Propagation Delay: 7.5ns @ 5V, 50pF
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Lead-free and RoHS compliant
Rigorously tested for reliability and performance by Texas Instruments
Compatibility
Compatible with TTL levels
Suitable for use in 5V and 3.3V systems
Surface mount, adhesive to multiple PCB layout standards
Application Areas
General purpose logic
Computers and computer peripherals
Data processing equipment
Personal electronics
Telecommunication systems
Product Lifecycle
Active status
Not currently near discontinuation
Replacements and future upgrades available through Texas Instruments' 74LV series if needed
Several Key Reasons to Choose This Product
Optimized for low-voltage and low-power applications
Ensures high-speed signal propagation for faster response times
Flexible supply voltage range ideal for various electronic products
Industry-standard SOIC-14 package for easy assembly and standardized PCB design
Proven reliability from a reputable manufacturer with wide industry acceptance
Robust performance over a wide range of environmental conditions
