Manufacturer Part Number

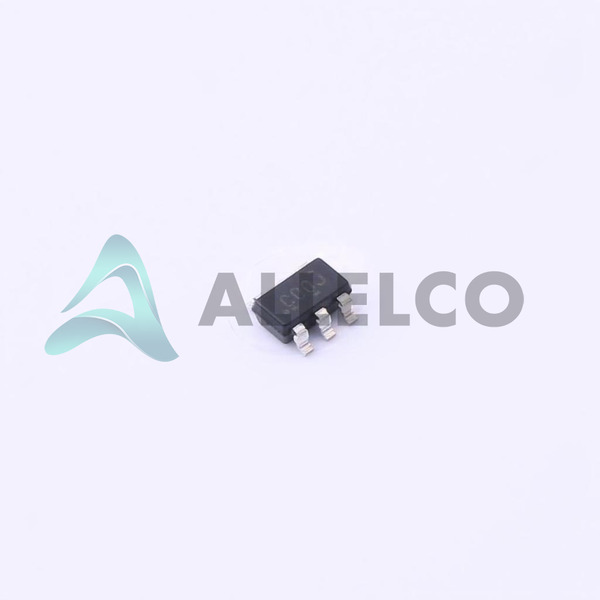

SN74LVC1G00DBVT
Manufacturer
Texas Instruments
Introduction
The SN74LVC1G00DBVT is a single 2-input NAND gate from Texas Instruments' 74LVC series, provided in tape and reel packaging for efficient assembly processes.
Product Features and Performance
Single 2-input NAND gate logic functionality
Low quiescent current of 10 µA max ensures efficiency in standby mode
Capable of driving 32mA output high and low, supporting high drive applications
Supports a wide range of supply voltages from 1.65V to 5.5V for versatile use across various logic levels
Fast maximum propagation delay of 4.3ns at 5V, 50pF, enabling quick response in circuits
Operates in extreme temperatures from -40°C to 125°C, making it suitable for harsh environments
Product Advantages
The broad voltage range accommodates numerous application requirements, enhancing compatibility
Low power consumption and high drive capability offer an optimal balance between energy efficiency and performance
High-speed performance facilitates rapid signal processing for efficient operation
Key Technical Parameters
Logic Type: NAND Gate
Number of Circuits: 1
Number of Inputs: 2
Voltage Supply: 1.65V ~ 5.5V
Current Quiescent (Max): 10 µA
Current Output High, Low: 32mA
Input Logic Level Low: 0.7V ~ 0.8V
Input Logic Level High: 1.7V ~ 2V
Max Propagation Delay @ V, Max CL: 4.3ns @ 5V, 50pF
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Manufactured by Texas Instruments, a leader in semiconductor innovation, ensuring high reliability and performance
Compliant with industry standards for safety and quality
Compatibility
Surface mount package (SOT-23-5) assures compatibility with modern PCB technologies and automated assembly lines
Wide operating voltage range and logic levels enable use with a vast array of other components and systems
Application Areas
Embedded systems
Logic signal processing
Networking equipment
Consumer electronics
Industrial controls
Product Lifecycle
Status: Active
This product is currently active and not near the end of its life cycle, with Texas Instruments continuing to provide support and availability.
Several Key Reasons to Choose This Product
High reliability and performance guaranteed by Texas Instruments
Low power consumption coupled with high output drive capability offers an efficient solution for various applications
Capable of operating over a wide voltage range and in extreme temperature conditions, ensuring versatility across different environments and applications
Fast signal processing capability enhances system performance
Surface mount packaging facilitates easy integration into modern electronic designs
