Manufacturer Part Number

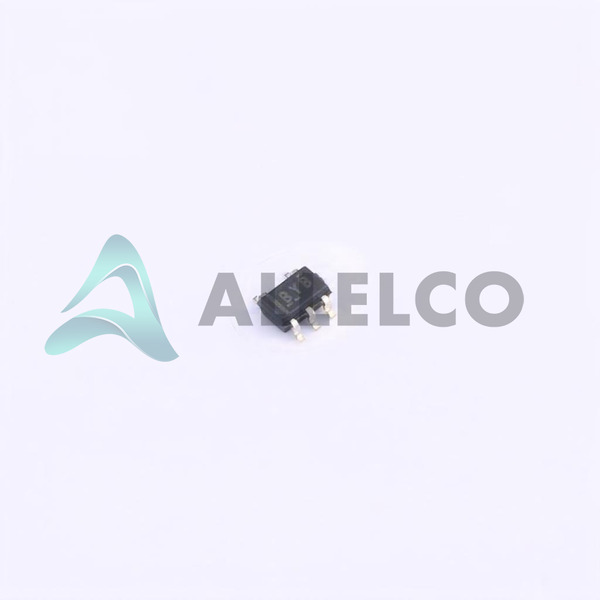

SN74LVC1G32MDCKREP
Manufacturer
Texas Instruments
Introduction
The SN74LVC1G32MDCKREP is a single 2-input positive-OR gate, part of the 74LVC series designed for optimal performance in digital logic operations.
Product Features and Performance
Single 2-input OR Gate
Low quiescent current of only 10 µA
High output current of 32 mA
Optimal input logic levels for interfacing with various systems (Low: 0.7V to 0.8V, High: 1.7V to 2V)
Fast propagation delay: 4.5ns at 5V, 50pF
Product Advantages
Wide supply voltage range from 1.65V to 5.5V accommodates various power systems
Capable of operating in a wide temperature range from -55°C to 125°C
Compatible with down to 1.8V logic levels
Key Technical Parameters
Logic Type: OR Gate
Voltage Supply: 1.65V to 5.5V
Current Quiescent (Max): 10 µA
Current Output High, Low: 32mA, 32mA
Max Propagation Delay @ V, Max CL: 4.5ns @ 5V, 50pF
Operating Temperature: -55°C to 125°C
Input Logic Level Low: 0.7V to 0.8V
Input Logic Level High: 1.7V to 2V
Quality and Safety Features
High reliability and stable operation in extended temperature ranges
Built under strict compliance for industrial safety and performance standards
Compatibility
Logical level compatibility with 1.8V, 2.5V, 3.3V, and 5V systems
Surface Mount (SC-70-5, SOT-353) for wide PCB compatibility
Application Areas
Consumer Electronics
Communication Systems
Computing Equipment
Industrial Control Logic
Product Lifecycle
Product Status: Active
Not reported nearing discontinuation
Replacement and upgrade options available
Several Key Reasons to Choose This Product
High tolerance to temperature fluctuations ensuring reliability in diverse environments
Low power consumption makes it ideal for portable and battery-operated applications
Fast switching speeds suitable for high-frequency logic operations
Tight input logic level specification ensures clear and accurate signal processing
Strong output drive capability for driving larger loads or fan-out to multiple inputs
