Manufacturer Part Number

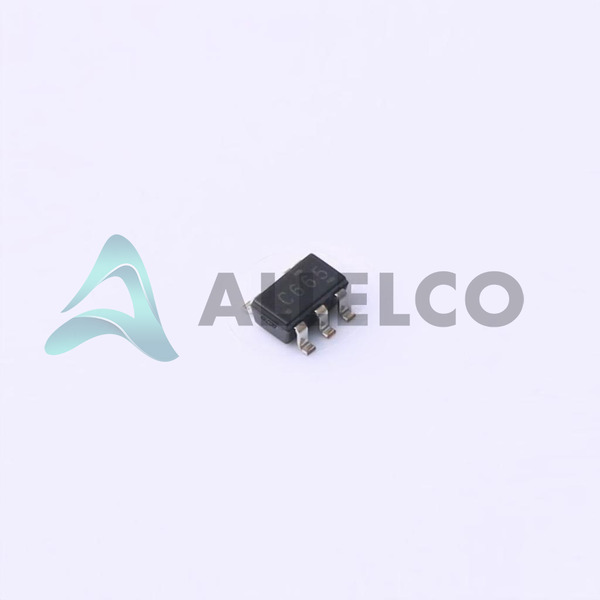

SN74LVC1G66DBVT
Manufacturer
Texas Instruments
Introduction
The SN74LVC1G66DBVT is a single-pole, single-throw (SPST) normally open analog switch from Texas Instruments. It is part of the 74LVC series and offers a high-performance, low-power switching solution for a wide range of applications.
Product Features and Performance
1:1 multiplexer/demultiplexer circuit
Single-circuit configuration
Low on-state resistance of 10Ω max
High -3dB bandwidth of 300MHz
Wide operating voltage range of 1.65V to 5.5V
Fast switching speeds with a maximum turn-on and turn-off time of 4.2ns and 5ns, respectively
Low leakage current of 100nA max
Product Advantages
Compact SOT-23-5 package for space-constrained designs
Excellent signal integrity with low on-state resistance and high bandwidth
Wide operating voltage range for versatile applications
Fast switching speeds for high-speed data transfer
Key Reasons to Choose This Product
Reliable and high-performance analog switching solution
Suitable for a wide range of applications, including data acquisition, signal routing, and instrumentation
Low power consumption and space-saving package
Backed by Texas Instruments' reputation for quality and innovation
Quality and Safety Features
Designed and manufactured to Texas Instruments' stringent quality standards
Compliant with industry safety and environmental regulations
Compatibility
Compatible with a variety of digital and analog circuits operating within the 1.65V to 5.5V voltage range
Application Areas
Data acquisition and signal routing
Instrumentation and test equipment
Industrial automation and control systems
Consumer electronics
Product Lifecycle
["The SN74LVC1G66DBVT is currently in Last Time Buy status, indicating that it is nearing the end of its product lifecycle.","Our website's sales team may offer equivalent or alternative models, such as the SN74LVC1G66DBVR or the SN74LVC1G66DCKR. Customers are advised to contact our website's sales team for more information on available options."]
