Manufacturer Part Number

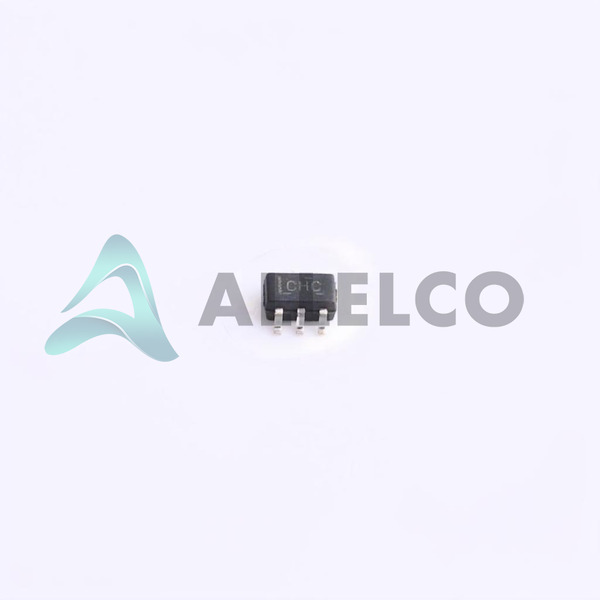

SN74LVC2G07MDCKTEP
Manufacturer
texas-instruments
Introduction
The SN74LVC2G07MDCKTEP is a dual buffer designed with non-inverting logic and an open-drain output from Texas Instruments. It is part of the 74LVC series, optimized for low voltage operation and high performance.
Product Features and Performance
Non-Inverting Buffers
Dual Elements with Single Bit per Element
Open Drain Output
Low Output Current of 24mA
Wide Supply Voltage Range from 1.65V to 5.5V
Operates in ambient temperatures from -55°C to 125°C
Product Advantages
Compatible with mixed-voltage systems due to wide voltage range
Suitable for high-temperature environments
Low power consumption enhances device longevity
Suitable for downscaling in portable and space-sensitive designs
Key Technical Parameters
Number of Elements: 2
Number of Bits per Element: 1
Current Output High, Low: 24mA
Voltage Supply: 1.65V to 5.5V
Operating Temperature: -55°C to 125°C
Mounting Type: Surface Mount
Package / Case: 6-TSSOP, SC-88, SOT-363
Quality and Safety Features
Manufactured under strict standards ensuring high reliability
Suitable for operation in extreme temperature conditions
Compatibility
Interfaceable with multiple logic families due to flexible voltage range
Compatible with surface mount technology for PCB assembly
Application Areas
High-speed digital systems
Portable and low-power electronics
Communication infrastructure
Data processing systems
Product Lifecycle
Currently active and in production
No indication of discontinuation with ongoing support and availability of replacements
Several Key Reasons to Choose This Product
Broad supply voltage range facilitates design flexibility
High-temperature operational capability ensures reliability in harsh environments
Low output current suitable for interfacing with next-stage components
Highly compact package ideal for high-density electronic assemblies
Produced by Texas Instruments, a leader in semiconductor solutions ensuring technical support and product authenticity
