Manufacturer Part Number

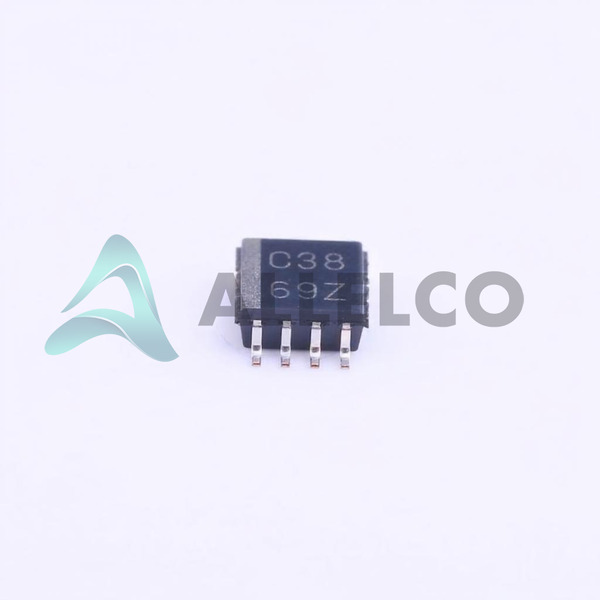

SN74LVC2G38DCTR
Manufacturer
Texas Instruments
Introduction
The SN74LVC2G38DCTR is a dual 2-input NAND gate with open-drain outputs, designed for 1.65V to 5.5V VCC operation.
Product Features and Performance
Dual 2-input NAND gate logic
Open-drain outputs for wired AND functions
Supports 1.65V to 5.5V VCC operation
Low quiescent current of maximum 10 µA
Capable of driving up to 32mA output current
Low input logic level: 0.7V to 0.8V for VKL
High input logic level: 1.7V to 2V for VKH
Fast maximum propagation delay of 3.9ns at 5V, 50pF
Operating temperature range: -40°C to 85°C
Product Advantages
Flexible voltage range accommodates varied supply levels
Very low power consumption enhances efficiency
Open-drain outputs facilitate wired AND gates configurations
High drive current support for output devices
Quick response time suitable for high-speed applications
Key Technical Parameters
Logic Type: NAND Gate
Number of Circuits: 2
Voltage Supply: 1.65V ~ 5.5V
Current Quiescent (Max): 10 µA
Current Output High, Low: -, 32mA
Max Propagation Delay @ V, Max CL: 3.9ns @ 5V, 50pF
Input Logic Level Low: 0.7V ~ 0.8V
Input Logic Level High: 1.7V ~ 2V
Quality and Safety Features
Manufactured by Texas Instruments, a leader in semiconductor innovation
Complies with industry-standard quality and safety regulations
Compatibility
Surface Mount technology for PCB assembly
Compatible with a wide range of logic circuits due to its voltage flexibility
Application Areas
Automotive, Industrial, Consumer Electronics
High-speed data processing systems
Wired-AND logic configurations
Product Lifecycle
Active status, ensuring availability for production and design
Texas Instruments provides continual support for the product
Several Key Reasons to Choose This Product
Reliability and innovation backed by Texas Instruments
Versatile power supply compatibility (1.65V ~ 5.5V)
Efficient power consumption for battery-powered applications
Open-drain outputs enhance circuit design flexibility
Fast signal processing capabilities for critical applications
Broad application suitability from consumer electronics to automotive systems
