Manufacturer Part Number

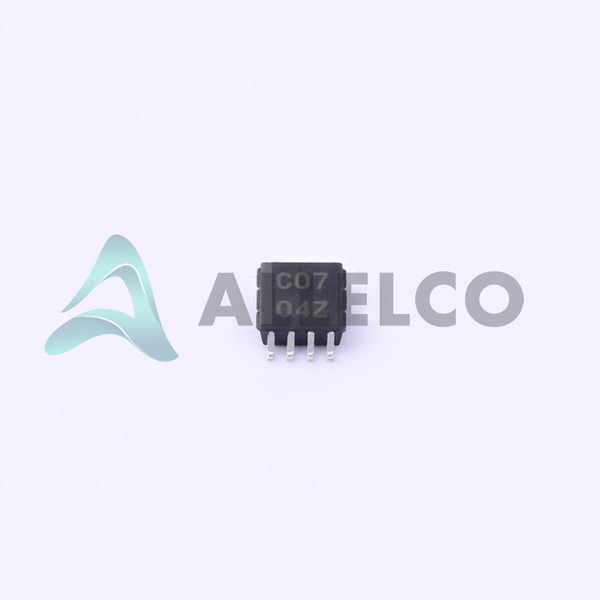

SN74LVC3G07DCT3
Manufacturer
Texas Instruments
Introduction
Triple Buffer with Open-Drain Outputs
Product Features and Performance
Triple non-inverting buffer
Open-drain outputs
Supports 1.65V to 5.5V VCC operation
High drive capability
Product Advantages
Wide supply voltage range allows for use in diverse applications
Low ON-state resistance ensures minimal voltage drop and power loss
High-speed communication with 5V tolerant inputs
Key Technical Parameters
Number of Elements: 3
Number of Bits per Element: 1
Current - Output High, Low: -, 32mA
Supply Voltage: 1.65V ~ 5.5V
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Quality and Safety Features
Extended temperature range for industrial reliability
Robust construction for surface mount assembly
Compatibility
Compatible with down translation to VCC operation
Application Areas
High-speed signal buffering
Logic level translation
Automotive systems
Consumer electronics
Product Lifecycle
Active status
Not reported to be nearing discontinuation
Several Key Reasons to Choose This Product
Compatible with multiple voltage levels for system integration flexibility
Enhanced thermal performance for reliability in various environments
Able to drive heavy loads with 32mA output current capacity
Space-saving LSSOP/MSOP packaging suitable for compact designs
