HomeProductsIntegrated Circuits (ICs)Logic - LatchesSN74LVC573ADWR

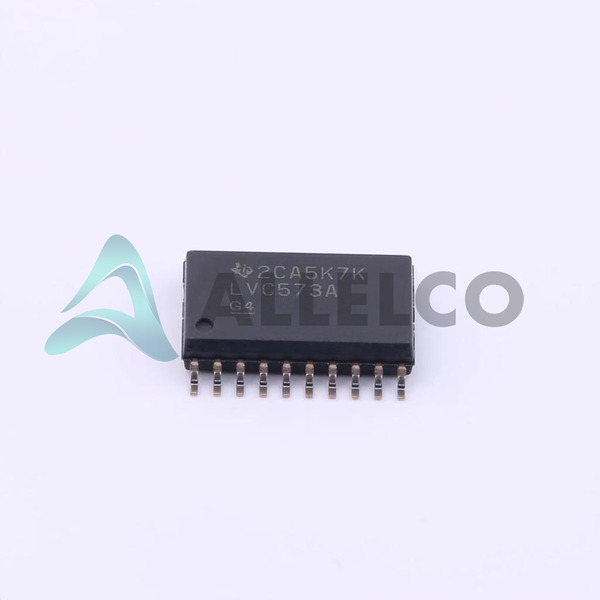

SN74LVC573ADWR Image
SN74LVC573ADWR Image - 1SN74LVC573ADWR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

SN74LVC573ADWR - Texas Instruments

Manufacturer Part Number
SN74LVC573ADWR
Manufacturer
Texas Instruments
Allelco Part Number
32D-SN74LVC573ADWR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC OCT TRANSP D-TYP LATCH 20SOIC
Package
20-SOIC
Data sheet
1.SN74LVC573ADWR.pdf ...

PCN Design/Specification

Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 151820
  • Unit Price: $0.282
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.282 $0.28
10+ $0.224 $2.24
30+ $0.20 $6.00
100+ $0.169 $16.90
500+ $0.155 $77.50
1000+ $0.147 $147.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

SN74LVC573ADWR Tech Specifications
Texas Instruments - SN74LVC573ADWR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - SN74LVC573ADWR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 1.65V ~ 3.6V
Supplier Device Package 20-SOIC
Series 74LVC
Package / Case 20-SOIC (0.295', 7.50mm Width)
Package Tape & Reel (TR)
Output Type Tri-State
Operating Temperature -40°C ~ 85°C
Product Attribute Attribute Value
Mounting Type Surface Mount
Logic Type D-Type Transparent Latch
Independent Circuits 1
Delay Time - Propagation 2ns
Current - Output High, Low 24mA, 24mA
Circuit 8:8
Base Product Number 74LVC573

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

SN74LVC573ADWR

Manufacturer

Texas Instruments

Introduction

The SN74LVC573ADWR is a logic latch from Texas Instruments, known for its high-performance and reliability in digital circuits.

Product Features and Performance

D-Type Transparent Latch

8-bit latching capability

Tri-State outputs for bus interfacing

Supports 1.65V to 3.6V power supply range

Fast propagation delay of 2ns

Wide operating temperature range from -40°C to 85°C

Product Advantages

High drive current of 24mA for both high and low outputs

Low voltage operation suitable for battery-powered devices

Compatibility with mixed-voltage system environments

Key Technical Parameters

Logic Type: D-Type Transparent Latch

Circuit: 8:8

Voltage - Supply: 1.65V to 3.6V

Independent Circuits: 1

Propagation Delay Time: 2ns

Current - Output High, Low: 24mA

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Fabricated with high-standard Texas Instruments technology

Reliable performance in a wide range of environmental conditions

Compatibility

Interfacing with other 3.3V or 5V logic components

Suitable for surface mount technology applications

20-SOIC package compatible with standard PCB layouts

Application Areas

Consumer electronics

Computing systems

Data communication equipment

Industrial automation

Product Lifecycle

Product Status: Active

No immediate risk of discontinuation

Potential availability of replacements or upgrades in line with 74LVC series

Several Key Reasons to Choose This Product

High speed and low power consumption for efficient system design

Broad compatibility with various digital systems and existing infrastructure

Robust Tri-State outputs for easy integration into bus systems

Texas Instruments' reputation for reliable and durable electronic components

Wide temperature range utilization for both commercial and industrial applications

Readily available in standard Surface Mount 20-SOIC packages for straightforward PCB design

Offering high performance with a logic latch facility in a compact package

Ideal for complex electronic systems requiring high-speed data retention

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments SN74LVC573ADWR

Product Attribute SN74LVC573ADWRG4 SN74LVC573ADBR SN74LVC573ADGVR SN74LVC573ADBRG4
Part Number SN74LVC573ADWRG4 SN74LVC573ADBR SN74LVC573ADGVR SN74LVC573ADBRG4
Manufacturer Texas Instruments Texas Instruments Texas Instruments Luminary Micro / Texas Instruments
Independent Circuits - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Logic Type - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Circuit - - - -
Series - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Current - Output High, Low - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Delay Time - Propagation - - - -
Voltage - Supply - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Package - Tape & Reel (TR) Tube Tape & Reel (TR)

SN74LVC573ADWR Datasheet PDF

Download SN74LVC573ADWR pdf datasheets and Texas Instruments documentation for SN74LVC573ADWR - Texas Instruments.

Datasheets
Cylindrical Battery Holders.pdf
HTML Datasheet
SN54LVC573A, SN74LVC573A.pdf
PCN Design/Specification
Cylindrical Battery Holders.pdf
