Home Products Integrated Circuits (ICs)PMIC - Voltage Reference~~TL1431CLPME3~~

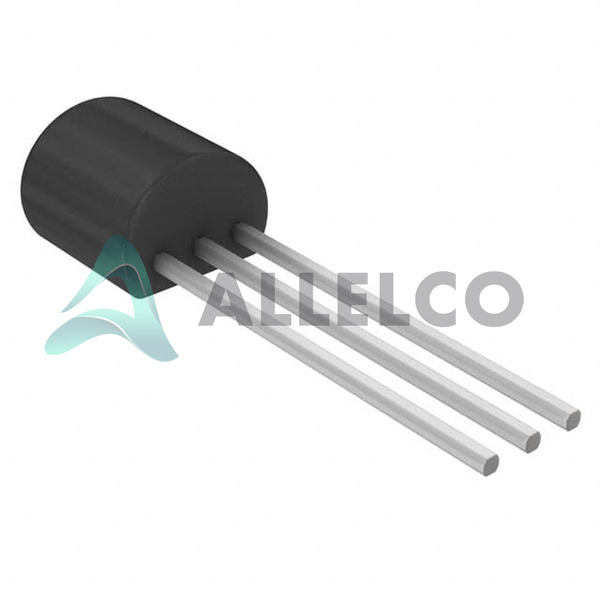

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

TL1431CLPME3 - Texas Instruments

Name: Texas Instruments TL1431CLPME3
Brand: Texas Instruments
SKU: TL1431CLPME3
Price: 0.367 USD
Availability: InStock
Rating: 5 (4 reviews)

Manufacturer Part Number: TL1431CLPME3

Manufacturer: Texas Instruments

Allelco Part Number: 98D-TL1431CLPME3

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC VREF SHUNT ADJ 0.4% TO92-3

Package: TO-92-3

Data sheet: 1.TL1431CLPME3.pdf ...

Datasheets
TL1431/31M.pdf

PCN Design/Specification
TL1431/TL1431M 17/Oct/2016.pdf Mult Dev Material Chg 15/Jan/2021.pdf

PCN Assembly/Origin
Mold Compound Addition 04/Jun/2021.pdf

HTML Datasheet
TL1431/31M.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 38846

Unit Price: $1.00
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$1.00	$1.00
200+	$0.388	$77.60
500+	$0.374	$187.00
1000+	$0.367	$367.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

TL1431CLPME3 Tech Specifications
Texas Instruments - TL1431CLPME3 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TL1431CLPME3

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	36 V
Voltage - Input	-
Tolerance	±0.4%
Temperature Coefficient	-
Supplier Device Package	TO-92-3
Series	-
Reference Type	Shunt
Package / Case	TO-226-3, TO-92-3 (TO-226AA) Formed Leads

Product Attribute	Attribute Value
Package	Bulk
Output Type	Adjustable
Operating Temperature	0°C ~ 70°C (TA)
Noise - 10Hz to 10kHz	-
Noise - 0.1Hz to 10Hz	-
Mounting Type	Through Hole
Current - Supply	-
Current - Output	100 mA
Current - Cathode	1 mA
Base Product Number	TL1431

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TL1431CLPME3

Product Attribute
Part Number	TL1431CLPE3	TL1431CLPRE3	TL1431CLPM	TL1431CLP
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Reference Type	-	External, Internal	External	External, Internal
Voltage - Input	-	-	-	-
Current - Cathode	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Noise - 0.1Hz to 10Hz	-	-	-	-
Current - Output	-	-	-	-
Output Type	-	Current - Unbuffered	Voltage - Buffered	-
Voltage - Output (Min/Fixed)	-	-	-	-
Noise - 10Hz to 10kHz	-	-	-	-
Tolerance	-	-	-	-
Current - Supply	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Temperature Coefficient	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Series	-	-	-	-
Voltage - Output (Max)	-	-	-	-

TL1431CLPME3 Datasheet PDF

Download TL1431CLPME3 pdf datasheets and Texas Instruments documentation for TL1431CLPME3 - Texas Instruments.

Datasheets: TL1431/31M.pdf
PCN Design/Specification: TL1431/TL1431M 17/Oct/2016.pdf Mult Dev Material Chg 15/Jan/2021.pdf
PCN Assembly/Origin: Mold Compound Addition 04/Jun/2021.pdf
HTML Datasheet: TL1431/31M.pdf
