HomeProductsIntegrated Circuits (ICs)Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsTLC2272ACD

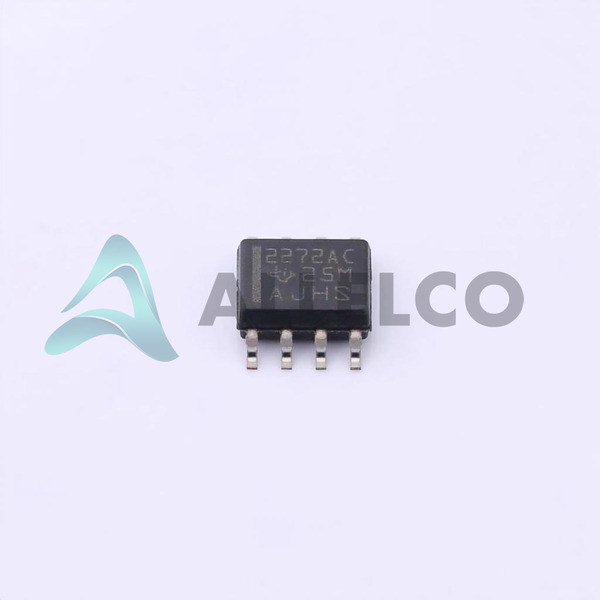

TLC2272ACD Image
TLC2272ACD Image - 1TLC2272ACD Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TLC2272ACD - Texas Instruments

Manufacturer Part Number
TLC2272ACD
Manufacturer
Texas Instruments
Allelco Part Number
32D-TLC2272ACD
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC CMOS 2 CIRCUIT 8SOIC
Package
8-SOIC
Data sheet
1.TLC2272ACD.pdf ...

PCN Assembly/Origin

Assembly/Fab Site 01/Feb/2023.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 28586
  • Unit Price: $1.705
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.705 $1.71
10+ $1.513 $15.13
30+ $1.375 $41.25
100+ $1.25 $125.00
500+ $1.193 $596.50
1000+ $1.17 $1,170.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TLC2272ACD Tech Specifications
Texas Instruments - TLC2272ACD technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TLC2272ACD

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply Span (Min) 4.4 V
Voltage - Supply Span (Max) 16 V
Voltage - Input Offset 300 µV
Supplier Device Package 8-SOIC
Slew Rate 3.6V/µs
Series -
Package / Case 8-SOIC (0.154", 3.90mm Width)
Package Tube
Output Type Rail-to-Rail
Product Attribute Attribute Value
Operating Temperature 0°C ~ 70°C (TA)
Number of Circuits 2
Mounting Type Surface Mount
Gain Bandwidth Product 2.25 MHz
Current - Supply 2.4mA (x2 Channels)
Current - Output / Channel 50 mA
Current - Input Bias 1 pA
Base Product Number TLC2272
Amplifier Type CMOS

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

Manufacturer Part Number

TLC2272ACD

Manufacturer

Texas Instruments

Introduction

Dual, high-performance, CMOS operational amplifiers

Product Features and Performance

Rail-to-rail output

Low noise: 18 nV/√Hz

High gain bandwidth product: 2.25 MHz

Low input bias current: 1 pA

Low input offset voltage: 300 μV

High slew rate: 3.6 V/μs

Capable of driving 50 mA output current per channel

Product Advantages

Excellent performance for instrumentation and general-purpose applications

Ideal for battery-powered and single-supply systems

Suitable for use in a wide range of operating voltages

Key Technical Parameters

Operating voltage range: 4.4 V to 16 V

Quiescent current per channel: 2.4 mA

Operating temperature range: 0°C to 70°C

Quality and Safety Features

RoHS3 compliant

Compatibility

Surface mount package: 8-SOIC (0.154", 3.90mm Width)

Application Areas

Instrumentation and measurement equipment

Medical devices

Industrial automation and control systems

Portable and battery-powered electronics

Product Lifecycle

This product is currently in production and not nearing discontinuation.

Key Reasons to Choose This Product

Exceptional performance and low power characteristics

Versatile operating voltage range

Suitable for a wide range of applications

Reliable and high-quality Texas Instruments design

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TLC2272ACD

Product Attribute TLC2272ACDR TLC2272ACDG4 TLC2272ACDRG4 TLC2272ACPW
Part Number TLC2272ACDR TLC2272ACDG4 TLC2272ACDRG4 TLC2272ACPW
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Base Product Number - DAC34H84 MAX500 ADS62P42
Current - Supply - - - -
Series - - - -
Voltage - Input Offset - - - -
Voltage - Supply Span (Max) - - - -
Number of Circuits - - - -
Voltage - Supply Span (Min) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Gain Bandwidth Product - - - -
Amplifier Type - - - -
Slew Rate - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Current - Input Bias - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Current - Output / Channel - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Output Type - Current - Unbuffered Voltage - Buffered -
